Camlock fittings, also known as cam and groove couplings, are quick-connect couplings used to join hoses and pipes. Their simple design allows for fast, tool-free connections, making them ideal for various fluid transfer applications. This guide will explore the types, materials, and uses of camlock fittings, providing a comprehensive understanding of their versatility and efficiency.
These fittings are widely used in industries requiring frequent hose connections, such as chemical, petroleum, and agriculture. Their ease of use and reliable sealing make them a preferred choice for transferring liquids and powders. Understanding their specifications and applications ensures optimal performance and safety in diverse industrial environments.

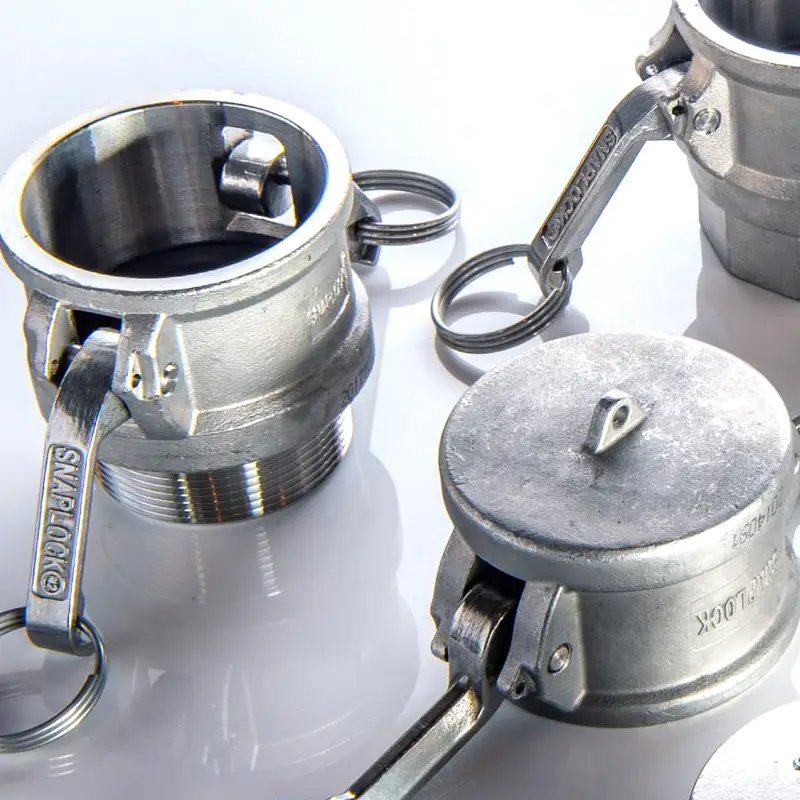

What Is a Camlock Fitting
A camlock fitting, also known as a cam and groove coupling, is a quick-connect coupling used for connecting hoses and pipes in various industrial applications. It consists of two parts: a male adapter and a female coupler. The connection is made by inserting the adapter into the coupler and then closing the cam arms, which creates a secure, leak-proof seal. This design allows for rapid connections and disconnections without the need for tools.
Camlock fittings are valued for their ease of use, durability, and versatility. They are commonly used in industries such as chemical processing, agriculture, construction, and petroleum, where frequent hose changes or connections are required. The fittings are available in various materials, including stainless steel, aluminum, brass, and polypropylene, to accommodate different fluids and environmental conditions. This adaptability makes them a reliable choice for efficient fluid and material transfer.
How Do Camlock Fittings Work
Camlock fittings operate on a simple yet effective cam and groove principle. The male adapter, featuring a grooved end, is inserted into the female coupler, which has cam arms. Once the adapter is fully inserted, the cam arms on the coupler are pivoted downward. This action locks the adapter into place, creating a tight, secure seal. The internal gasket within the coupler, usually made of materials like Buna-N, EPDM, or PTFE, compresses against the adapter, ensuring a leak-proof connection.
The cam arms’ design provides a mechanical advantage, allowing for quick and easy connections and disconnections without the need for tools. This feature is particularly beneficial in applications requiring frequent hose changes or connections. The robust locking mechanism prevents accidental disconnections, even under pressure or vibration, making camlock fittings a reliable choice for various industrial fluid and material transfer applications.

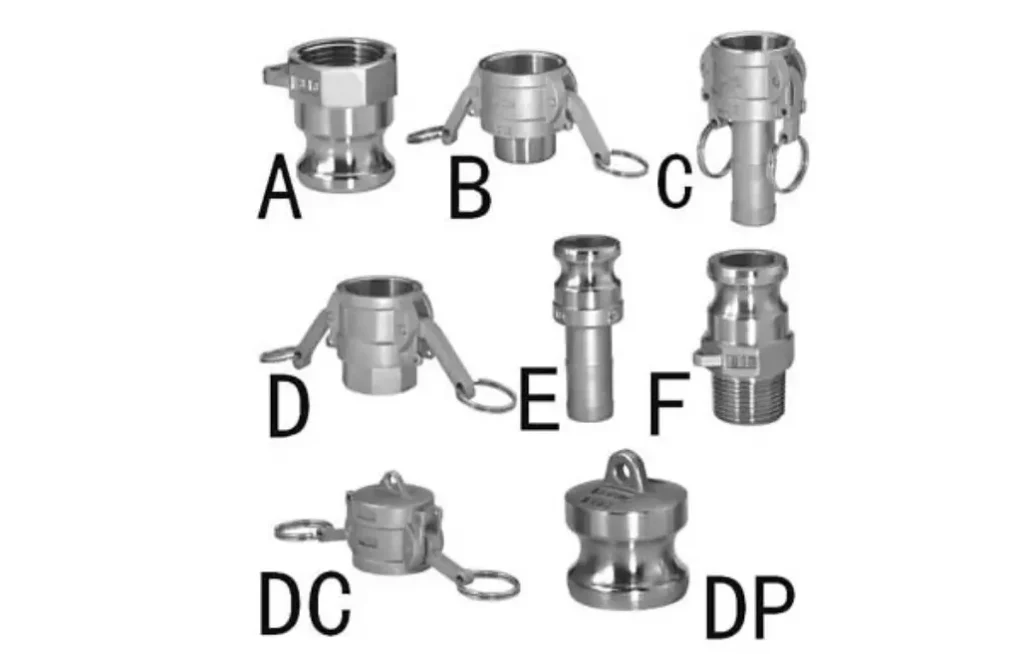

Camlock Fittings Types
Camlock fittings are essential for quick and secure fluid and material transfers, offering a variety of types to suit diverse industrial needs. Each type is designed with specific applications in mind, ensuring efficient and leak-free connections. Understanding these variations is crucial for optimal performance.
Type A Camlock Fittings
Type A camlock fittings are male adapters with a female thread, designed to connect to female threaded connections. These fittings are commonly used with Type D couplers, providing a secure and rapid connection. The female thread allows for easy integration with threaded pipes or hoses, making them versatile for various fluid transfer applications.
Their robust design ensures a tight seal, preventing leaks even under high pressure. Type A fittings are available in various materials, including stainless steel, aluminum, and brass, to accommodate different fluid types and environmental conditions. Their adaptability makes them a staple in industries requiring frequent connections and disconnections.
Type B Camlock Fittings
Type B camlock fittings are female couplers with a male thread, designed to connect to male threaded connections. These couplers are often used with Type F adapters, providing a reliable and quick connection. The male thread allows for direct integration with threaded pipes or hoses, enhancing their versatility in fluid transfer systems.
The durable construction of Type B couplers ensures a secure seal, minimizing the risk of leaks and spills. Their availability in various materials allows for compatibility with a wide range of fluids, including chemicals and fuels. These couplers are essential in applications requiring frequent hose changes and reliable connections.
Type C Camlock Fittings
Type C camlock fittings are female couplers with a hose shank, designed to connect to hoses using clamps. These couplers are commonly used with Type E adapters, providing a quick and secure connection to hoses. The hose shank allows for easy attachment to flexible hoses, making them ideal for applications requiring frequent hose changes.
Their design ensures a tight seal, preventing leaks and spills during fluid transfer. Type C couplers are available in various materials to suit different fluid types and environmental conditions, enhancing their versatility. These couplers are essential in industries requiring rapid and reliable hose connections.
Type D Camlock Fittings
Type D camlock fittings are female couplers with a female thread, designed to connect to female threaded connections. These couplers are often used with Type A adapters, providing a reliable and quick connection. The female thread allows for direct integration with threaded pipes or hoses, enhancing their versatility in fluid transfer systems.
The robust construction of Type D couplers ensures a secure seal, minimizing the risk of leaks and spills. Their availability in various materials allows for compatibility with a wide range of fluids, including chemicals and fuels. These couplers are essential in applications requiring frequent hose changes and reliable connections.
Type E Camlock Fittings
Type E camlock fittings are male adapters with a hose shank, designed to connect to hoses using clamps. These adapters are commonly used with Type C couplers, providing a quick and secure connection to hoses. The hose shank allows for easy attachment to flexible hoses, making them ideal for applications requiring frequent hose changes.
Their design ensures a tight seal, preventing leaks and spills during fluid transfer. Type E adapters are available in various materials to suit different fluid types and environmental conditions, enhancing their versatility. These adapters are essential in industries requiring rapid and reliable hose connections.
Type F Camlock Fittings
Type F camlock fittings are male adapters with a male thread, designed to connect to male threaded connections. These adapters are often used with Type B couplers, providing a reliable and quick connection. The male thread allows for direct integration with threaded pipes or hoses, enhancing their versatility in fluid transfer systems.
The durable construction of Type F adapters ensures a secure seal, minimizing the risk of leaks and spills. Their availability in various materials allows for compatibility with a wide range of fluids, including chemicals and fuels. These adapters are essential in applications requiring frequent hose changes and reliable connections.
Type DC Camlock Fittings
Type DC camlock fittings are dust caps, designed to seal female couplers when not in use. These caps prevent contamination and damage to the coupler, ensuring its longevity and reliability. They are essential for maintaining the integrity of fluid transfer systems when connections are not active.
Their simple design allows for quick and easy installation and removal, providing a practical solution for protecting couplers. Type DC dust caps are available in various materials to suit different environmental conditions, ensuring compatibility and durability. These caps are crucial for preventing leaks and maintaining system cleanliness.
Type DP Camlock Fittings
Type DP camlock fittings are dust plugs, designed to seal male adapters when not in use. These plugs prevent contamination and damage to the adapter, ensuring its longevity and reliability. They are essential for maintaining the integrity of fluid transfer systems when connections are not active.
Their simple design allows for quick and easy installation and removal, providing a practical solution for protecting adapters. Type DP dust plugs are available in various materials to suit different environmental conditions, ensuring compatibility and durability. These plugs are crucial for preventing leaks and maintaining system cleanliness.
What Are Camlock Fittings Used For
Camlock fittings are used across a wide range of industries for quickly and securely connecting hoses and pipes. Their design allows for rapid connections and disconnections without the need for tools, making them ideal for applications requiring frequent changes or temporary setups. They are commonly employed in fluid and material transfer systems, where efficient and reliable connections are essential.
These fittings are particularly prevalent in industries such as chemical processing, agriculture, construction, and petroleum. They are used for transferring liquids, powders, and granular materials, ranging from water and chemicals to fuels and food products. Their versatility and durability make them indispensable for tasks like tank truck loading and unloading, irrigation, construction site dewatering, and industrial fluid handling.
- Chemical Processing: Transferring various chemical solutions.
- Agriculture: Irrigation and liquid fertilizer applications.
- Construction: Dewatering and material transfer on sites.
- Petroleum: Fuel and oil transfer in refineries and distribution.
- Industrial Fluid Handling: General fluid transfer in manufacturing.
- Tank Truck Operations: Loading and unloading of liquids.
- Food and Beverage: Transfer of liquids and granular materials.
- Pharmaceuticals: Transfer of chemical and liquid substances.
How to Measure a Camlock Fitting
Accurately measuring camlock fittings is crucial for ensuring compatibility and proper function in fluid transfer systems. These measurements determine the fitting’s size and type, guaranteeing a secure and leak-free connection. Here’s a step-by-step guide to measuring camlock fittings:
Step 1. Identify the Fitting Type and Size
Begin by identifying the type of camlock fitting you are measuring. Camlock fittings come in various types, including A, B, C, D, E, F, DC, and DP, each with distinct features. Determine the nominal size of the fitting, which is typically indicated on the fitting itself or in the manufacturer’s specifications. This nominal size corresponds to the inner diameter of the hose or pipe the fitting is intended to connect.
Understanding the fitting type and nominal size is essential for accurate measurements. Different camlock types have varying dimensions and connection mechanisms, so correct identification is crucial. The nominal size, though not a direct measurement, guides the subsequent measurement steps and ensures compatibility with other components.

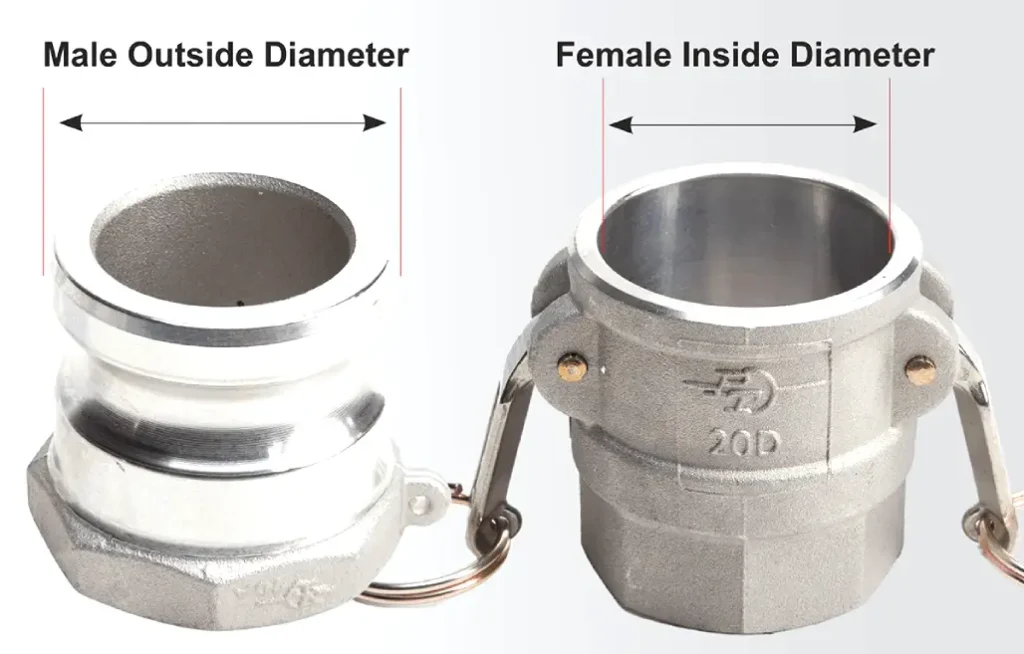

Step 2. Measure the Adapter and Coupler Diameters
Using a caliper or measuring tape, measure the outside diameter (OD) of the male adapter and the inside diameter (ID) of the female coupler. Ensure the caliper or tape is positioned accurately across the widest points of the adapter and coupler. Measure the diameter of the flange on the adapter and the coupler. These measurements will help determine the fitting’s overall size and compatibility with other fittings.
Accurate diameter measurements are critical for ensuring a proper fit. The OD of the adapter should correspond closely to the ID of the coupler, allowing for a tight and secure connection. The flange measurements are also important for confirming the fitting’s overall dimensions and ensuring it matches the specifications for your application.
Step 3. Measure the Cam Arm Distance and Length
Measure the distance between the cam arms on the female coupler when they are in the open position. This measurement is crucial for ensuring the adapter can be properly inserted and locked into place. Measure the length of the cam arms themselves to ensure they are the correct size and provide adequate leverage for locking the fitting. This measurement is critical for proper sealing.
The cam arm measurements are essential for ensuring the fitting’s functionality. The distance between the cam arms determines the ease of insertion, while the length of the cam arms affects the locking mechanism’s effectiveness. Incorrect cam arm dimensions can lead to improper sealing or difficulty in connecting and disconnecting the fittings.
Step 4. Measure the Gasket Thickness and Diameter
If the fitting has a gasket, measure its thickness and outside diameter. The gasket is crucial for creating a leak-proof seal, so its dimensions must be accurate. Use a caliper to measure the gasket’s thickness and diameter accurately. Ensure the gasket is in good condition and free from damage or wear.
Gasket measurements are vital for maintaining a leak-free connection. An improperly sized or damaged gasket can compromise the fitting’s seal, leading to leaks and potential system failures. Accurate gasket measurements ensure compatibility and proper sealing.
Camlock Fitting Sizes
Selecting the appropriate camlock fitting size is essential for ensuring a secure, leak-free connection and optimal system performance. The size of the fitting directly impacts its flow capacity and compatibility with hoses or pipes. Camlock fittings offer a range of sizes to accommodate diverse industrial needs, from small-scale applications to large-volume fluid transfers. Understanding these size variations is crucial for efficient and safe operations.
Camlock fittings typically range from ½ inch to 6 inches in diameter, depending on the material. Aluminum, brass, and stainless steel fittings are available across this full spectrum, while polypropylene fittings are generally offered in sizes up to 4 inches. The size chosen should correspond to the internal diameter of the hose or pipe being connected to ensure a proper fit. For smaller sizes, such as ½ inch, fittings often come standard with two handles for enhanced security and manageability.
The standard operating pressure for camlock couplers is around 150 psi for most sizes, making them suitable for a wide array of applications.
However, it’s crucial to consult the manufacturer’s specifications for each specific size and material, as pressure ratings can vary. Camlock fittings are commonly designed with National Pipe Threads (NPT) to ensure a tight seal when threaded onto pipes.
Additionally, hydraulic hose barb ends are available for direct hose connections, providing flexibility for different setup configurations. Special types and custom sizes can also be manufactured for unique application requirements.
Size Range:
- ½ inch to 6 inches for Aluminum, Brass, and Stainless Steel.
- ½ inch to 4 inches for Polypropylene.
Handle Configuration:
- ½ inch fittings typically include two handles.
Operating Pressure:
- Standard operating pressure is 150 psi.
- Consult manufacturer specifications for precise ratings.
Thread Types:
- National Pipe Threads (NPT) for threaded connections.
- Hydraulic hose barb ends for direct hose connections.
Customization:
- Special types and custom sizes available for specific needs.
Camlock Fitting Size Chart
| Size (Inches) | Typical Material | Typical Applications |
| ½ | Aluminum, Brass, Stainless Steel, Polypropylene | Small volume fluid transfer, garden hoses |
| ¾ | Aluminum, Brass, Stainless Steel, Polypropylene | Medium volume fluid transfer, light industrial |
| 1 | Aluminum, Brass, Stainless Steel, Polypropylene | General purpose fluid transfer, construction |
| 1 ½ | Aluminum, Brass, Stainless Steel, Polypropylene | Industrial fluid transfer, chemical handling |
| 2 | Aluminum, Brass, Stainless Steel, Polypropylene | Large volume fluid transfer, tank trucks |
| 3 | Aluminum, Brass, Stainless Steel | Heavy-duty industrial, large volume transfers |
| 4 | Aluminum, Brass, Stainless Steel, Polypropylene | High volume fluid transfer, industrial plants |
| 6 | Aluminum, Brass, Stainless Steel | Very high volume transfers, specialized applications |
How to Choose the Right Camlock Fittings
Selecting the right camlock fittings is crucial for ensuring a secure and efficient fluid transfer system. Begin by assessing the application’s specific requirements, including the type of fluid or material being transferred, the operating pressure and temperature, and the frequency of connections and disconnections. Consider the material compatibility of the fittings with the fluid to prevent corrosion or degradation. Ensure the fitting size matches the hose or pipe diameter for optimal flow.
Evaluate the fitting type and locking mechanism based on the application’s demands. Camlock fittings come in various types (A, B, C, D, E, F, DC, DP), each designed for specific connections and purposes. Choose a locking mechanism that provides secure and reliable connections, especially in high-pressure or high-vibration environments. Consider the ease of use and maintenance, as frequent connections and disconnections may require quick and simple handling.
Application Requirements:
- Fluid/material type and compatibility: Selecting fittings that withstand the chemical properties of the transferred substances prevents degradation and ensures longevity.
- Operating pressure and temperature: Choosing fittings rated for the system’s pressure and temperature extremes prevents leaks and system failures.
- Frequency of connections/disconnections: Opting for fittings designed for frequent use ensures durability and ease of handling in dynamic environments.
Camlock Fitting Type and Locking Mechanism:
- Camlock type selection (A, B, C, D, E, F, DC, DP): Matching the fitting type to the specific connection requirements ensures proper function and compatibility.
- Locking mechanism reliability: Choosing a robust locking mechanism prevents accidental disconnections and maintains system integrity in demanding conditions.
- Ease of use and maintenance: Selecting fittings that are easy to connect, disconnect, and maintain reduces downtime and simplifies operations.
Conclusion
Camlock fittings are essential for quick and secure connections in fluid and material transfer systems across diverse industries. Their ease of use, coupled with robust design, makes them indispensable for applications requiring frequent connections and disconnections. Understanding their types and applications ensures optimal performance and safety.
Proper selection and maintenance of camlock fittings are crucial for preventing leaks and ensuring system integrity. Their versatility and efficiency make them a preferred choice for various industrial needs, from chemical transfer to construction. Choosing the right camlock fitting enhances operational efficiency and reduces downtime.
