Camlock fittings are indispensable components in numerous industrial applications, known for their quick-connect capabilities and robust design. Understanding the various camlock fittings types is crucial for selecting the right coupling to ensure efficient and leak-free fluid and material transfers. This knowledge enhances operational safety and productivity.
This blog delves into the diverse camlock fittings types, exploring their specific applications and uses across industries. We’ll examine the unique features of each type, from A to DP, and provide insights on how to choose the optimal fitting for your needs, ensuring secure and reliable connections.

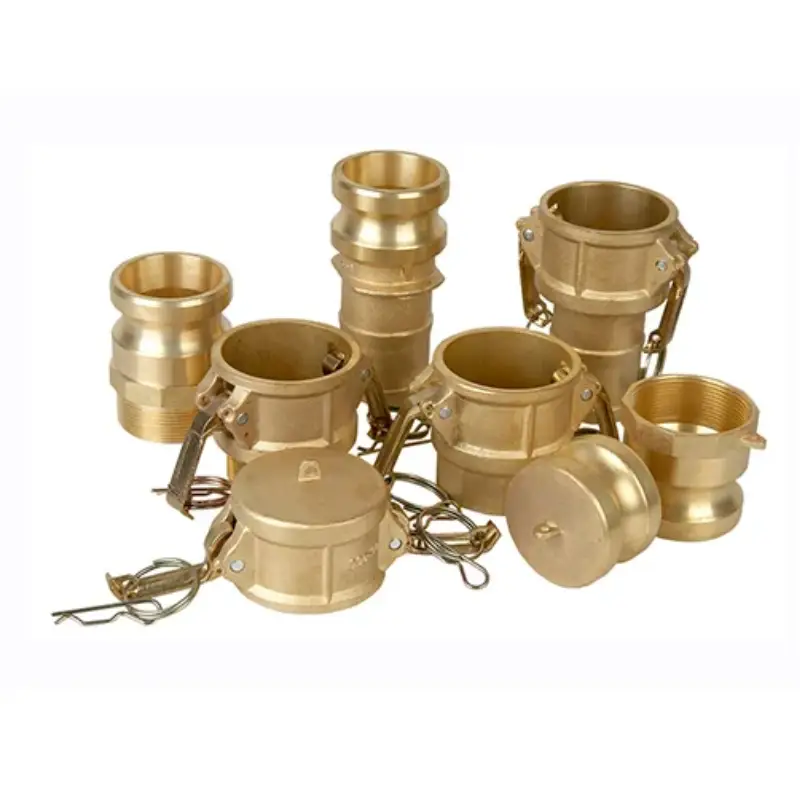

What Are Camlock Fittings
Camlock fittings, also known as cam and groove couplings, are quick-connect couplings designed for efficient and secure connections in fluid and material transfer systems. They consist of a male adapter and a female coupler, which are connected by inserting the adapter into the coupler and locking the cam arms. This simple mechanism allows for rapid connections and disconnections without the need for tools, making them highly versatile in various industrial applications.
These fittings are widely used in industries such as chemical processing, agriculture, construction, and petroleum, where frequent hose changes or connections are necessary. Their robust design and availability in various materials, including stainless steel, aluminum, brass, and polypropylene, ensure compatibility with diverse fluids and environmental conditions. This adaptability makes camlock fittings a reliable and efficient solution for fluid and material transfer.

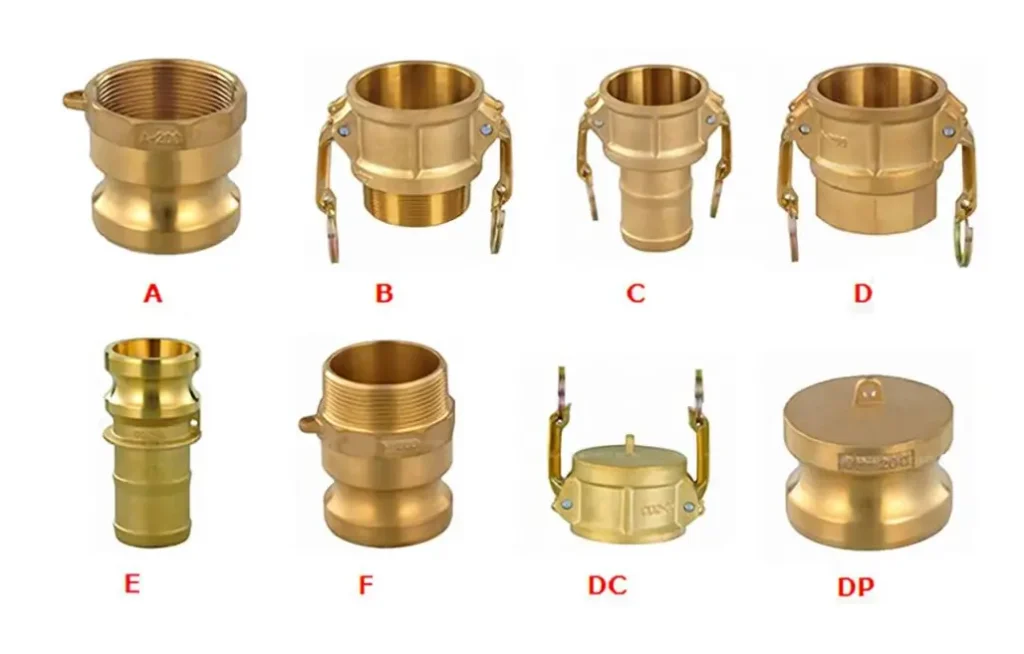

Camlock Fittings Types
Camlock fittings are essential for rapid and secure fluid and material transfers, offering a variety of types to suit diverse industrial needs. Each type is designed with specific applications in mind, ensuring efficient and leak-free connections. Understanding these variations is crucial for optimal performance.
Type A Camlock Fittings
Type A camlock fittings are male adapters with a female thread, designed to connect to female threaded connections. These fittings are commonly used with Type D couplers, providing a secure and rapid connection. The female thread allows for easy integration with threaded pipes or hoses, making them versatile for various fluid transfer applications.
Features: They feature a male adapter end with a female NPT thread, cam arms for locking, and a gasket for sealing. The robust design ensures a tight seal, preventing leaks even under high pressure. Type A fittings are available in various materials, including stainless steel, aluminum, and brass, to accommodate different fluid types and environmental conditions.
Benefits: Their adaptability makes them a staple in industries requiring frequent connections and disconnections. The threaded connection allows for easy integration with existing piping systems, and the camlock mechanism ensures quick and secure connections. They offer a reliable solution for various fluid transfer needs, minimizing downtime and enhancing efficiency.
Applications: Common applications include tank truck loading and unloading, chemical transfer, and general industrial fluid handling. They are frequently used in agricultural settings for irrigation and liquid fertilizer applications. Their versatility makes them suitable for a wide range of fluid transfer tasks.
Type B Camlock Fittings
Type B camlock fittings are female couplers with a male thread, designed to connect to male threaded connections. These couplers are often used with Type F adapters, providing a reliable and quick connection. The male thread allows for direct integration with threaded pipes or hoses, enhancing their versatility in fluid transfer systems.
Features: Type B couplers feature a female coupler body with a male NPT thread, cam arms for locking, and an internal gasket. The durable construction ensures a secure seal, minimizing the risk of leaks and spills. They are available in various materials, allowing for compatibility with a wide range of fluids.
Benefits: They allow for direct connection to male threaded pipes or hoses, simplifying setup and reducing the need for additional adapters. Their quick-connect mechanism facilitates rapid hose changes, enhancing operational efficiency. The robust design ensures reliable performance in demanding environments.
Applications: They are essential in applications requiring frequent hose changes and reliable connections, such as in chemical processing, petroleum transfer, and industrial fluid handling. They are also used in construction for dewatering and material transfer.
Type C Camlock Fittings
Type C camlock fittings are female couplers with a hose shank, designed to connect to hoses using clamps. These couplers are commonly used with Type E adapters, providing a quick and secure connection to hoses. The hose shank allows for easy attachment to flexible hoses, making them ideal for applications requiring frequent hose changes.
Features: Type C couplers feature a female coupler body with a hose shank, cam arms for locking, and an internal gasket. Their design ensures a tight seal, preventing leaks and spills during fluid transfer. They are available in various materials to suit different fluid types and environmental conditions.
Benefits: They provide a quick and easy connection to hoses, simplifying setup and reducing downtime. Their robust locking mechanism ensures a secure connection, even under pressure. They are versatile and adaptable to various hose sizes and materials.
Applications: They are essential in industries requiring rapid and reliable hose connections, such as in agriculture for irrigation, construction for dewatering, and industrial fluid handling. They are also used in tank truck operations for loading and unloading.
Type D Camlock Fittings
Type D camlock fittings are female couplers with a female thread, designed to connect to female threaded connections. These couplers are often used with Type A adapters, providing a reliable and quick connection. The female thread allows for direct integration with threaded pipes or hoses, enhancing their versatility in fluid transfer systems.
Features: Type D couplers feature a female coupler body with a female NPT thread, cam arms for locking, and an internal gasket. The robust construction ensures a secure seal, minimizing the risk of leaks and spills. They are available in various materials, allowing for compatibility with a wide range of fluids.
Benefits: They allow for direct connection to female threaded pipes or hoses, simplifying setup and reducing the need for additional adapters. Their quick-connect mechanism facilitates rapid hose changes, enhancing operational efficiency. The robust design ensures reliable performance in demanding environments.
Applications: They are essential in applications requiring frequent hose changes and reliable connections, such as in chemical processing, petroleum transfer, and industrial fluid handling. They are also used in construction for dewatering and material transfer.
Type E Camlock Fittings
Type E camlock fittings are male adapters with a hose shank, designed to connect to hoses using clamps. These adapters are commonly used with Type C couplers, providing a quick and secure connection to hoses. The hose shank allows for easy attachment to flexible hoses, making them ideal for applications requiring frequent hose changes.
Features: Type E adapters feature a male adapter end with a hose shank, cam arms for locking, and a gasket for sealing. Their design ensures a tight seal, preventing leaks and spills during fluid transfer. They are available in various materials to suit different fluid types and environmental conditions.
Benefits: They provide a quick and easy connection to hoses, simplifying setup and reducing downtime. Their robust locking mechanism ensures a secure connection, even under pressure. They are versatile and adaptable to various hose sizes and materials.
Applications: They are essential in industries requiring rapid and reliable hose connections, such as in agriculture for irrigation, construction for dewatering, and industrial fluid handling. They are also used in tank truck operations for loading and unloading.
Type F Camlock Fittings
Type F camlock fittings are male adapters with a male thread, designed to connect to male threaded connections. These adapters are often used with Type B couplers, providing a reliable and quick connection. The male thread allows for direct integration with threaded pipes or hoses, enhancing their versatility in fluid transfer systems.
Features: Type F adapters feature a male adapter end with a male NPT thread, cam arms for locking, and a gasket for sealing. The durable construction ensures a secure seal, minimizing the risk of leaks and spills. They are available in various materials, allowing for compatibility with a wide range of fluids.
Benefits: They allow for direct connection to male threaded pipes or hoses, simplifying setup and reducing the need for additional adapters. Their quick-connect mechanism facilitates rapid hose changes, enhancing operational efficiency. The robust design ensures reliable performance in demanding environments.
Applications: They are essential in applications requiring frequent hose changes and reliable connections, such as in chemical processing, petroleum transfer, and industrial fluid handling. They are also used in construction for dewatering and material transfer.
Type DC Camlock Fittings (Dust Caps)
Type DC camlock fittings are dust caps, designed to seal female couplers when not in use. These caps prevent contamination and damage to the coupler, ensuring its longevity and reliability. They are essential for maintaining the integrity of fluid transfer systems when connections are not active.
Features: Type DC dust caps feature a female coupler body with a solid end cap and cam arms for locking. Their design ensures a tight seal, preventing dust, debris, and other contaminants from entering the coupler. They are available in various materials to suit different environmental conditions.
Benefits: They protect female couplers from damage and contamination, extending their lifespan and ensuring reliable performance. They are easy to install and remove, providing a convenient solution for sealing couplers when not in use. They help maintain system cleanliness and prevent leaks.
Applications: They are used in all industries where camlock fittings are employed, particularly in applications where couplers are frequently disconnected and exposed to environmental contaminants. They are essential for maintaining the integrity of fluid transfer systems in storage or transport.
Type DP Camlock Fittings (Dust Plugs)
Type DP camlock fittings are dust plugs, designed to seal male adapters when not in use. These plugs prevent contamination and damage to the adapter, ensuring its longevity and reliability. They are essential for maintaining the integrity of fluid transfer systems when connections are not active.
Features: Type DP dust plugs feature a male adapter end with a solid plug and cam arms for locking. Their design ensures a tight seal, preventing dust, debris, and other contaminants from entering the adapter. They are available in various materials to suit different environmental conditions.
Benefits: They protect male adapters from damage and contamination, extending their lifespan and ensuring reliable performance. They are easy to install and remove, providing a convenient solution for sealing adapters when not in use. They help maintain system cleanliness and prevent leaks.
Applications: They are used in all industries where camlock fittings are employed, particularly in applications where adapters are frequently disconnected and exposed to environmental contaminants. They are essential for maintaining the integrity of fluid transfer systems in storage or transport.
Camlock Fitting Type Chart:
| Fitting Type | Description | Connection Type | Common Applications |
|---|---|---|---|
| Type A | Male adapter with female thread | Female threaded connection | Tank truck loading, chemical transfer |
| Type B | Female coupler with male thread | Male threaded connection | Industrial fluid handling, petroleum transfer |
| Type C | Female coupler with hose shank | Hose connection (clamps) | Agriculture, construction dewatering |
| Type D | Female coupler with female thread | Female threaded connection | Chemical processing, industrial fluid handling |
| Type E | Male adapter with hose shank | Hose connection (clamps) | Agriculture, tank truck operations |
| Type F | Male adapter with male thread | Male threaded connection | Petroleum transfer, industrial fluid handling |
| Type DC | Dust cap | Seals female coupler | Prevents contamination, storage |
| Type DP | Dust plug | Seals male adapter | Prevents contamination, storage |
How to Choose the Right Camlock Fittings
Selecting the right camlock fittings for your project is crucial to ensure efficient and leak-free fluid or material transfer. Begin by thoroughly assessing the specific requirements of your application. Consider factors such as the type of fluid or material being transferred, the operating pressure and temperature,1 and the frequency of connections and disconnections. Understanding these parameters will guide you in choosing the appropriate fitting material, size, and type.
Next, evaluate the fitting’s compatibility with the system’s environment and the materials being handled. Ensure the fittings are made from materials that can withstand the chemical properties of the transferred substances and the surrounding conditions. Select a locking mechanism that provides secure and reliable connections, especially in high-pressure or high-vibration environments. Consider the ease of use and maintenance, as frequent connections and disconnections may require quick and simple handling.
Application-Specific Requirements:
- Fluid/Material Type: Determine the chemical properties of the fluid or material to ensure compatibility with the fitting’s material, preventing corrosion and degradation that could lead to leaks or system failures.
- Operating Pressure and Temperature: Match the fitting’s pressure and temperature ratings to the system’s operating conditions to avoid leaks or damage, ensuring safe and efficient fluid transfer.
- Connection Frequency: Assess how often connections and disconnections are required to select fittings with durable locking mechanisms that withstand repeated use, minimizing downtime.
System Compatibility:
- Material Compatibility: Verify the fitting’s material is compatible with both the transferred substance and the environment to prevent chemical reactions or corrosion, ensuring longevity.
- Locking Mechanism Reliability: Opt for a robust locking mechanism that provides secure connections in high-pressure or high-vibration environments, preventing accidental disconnections.
- Ease of Use and Maintenance: Choose fittings that are easy to connect, disconnect, and maintain, especially in applications requiring frequent changes, to simplify operations.
Conclusion
In conclusion, understanding the various camlock fittings types is essential for optimizing fluid and material transfer systems across diverse industries. Each type, from A to DP, serves specific connection needs, ensuring efficient and secure operations. Proper selection based on application requirements minimizes downtime and enhances safety.
The versatility of camlock fittings, combined with their ease of use, makes them indispensable in sectors like chemical processing, agriculture, and construction. Knowledge of their distinct features enables users to choose the right fitting for specific tasks, ensuring compatibility and reliability.
