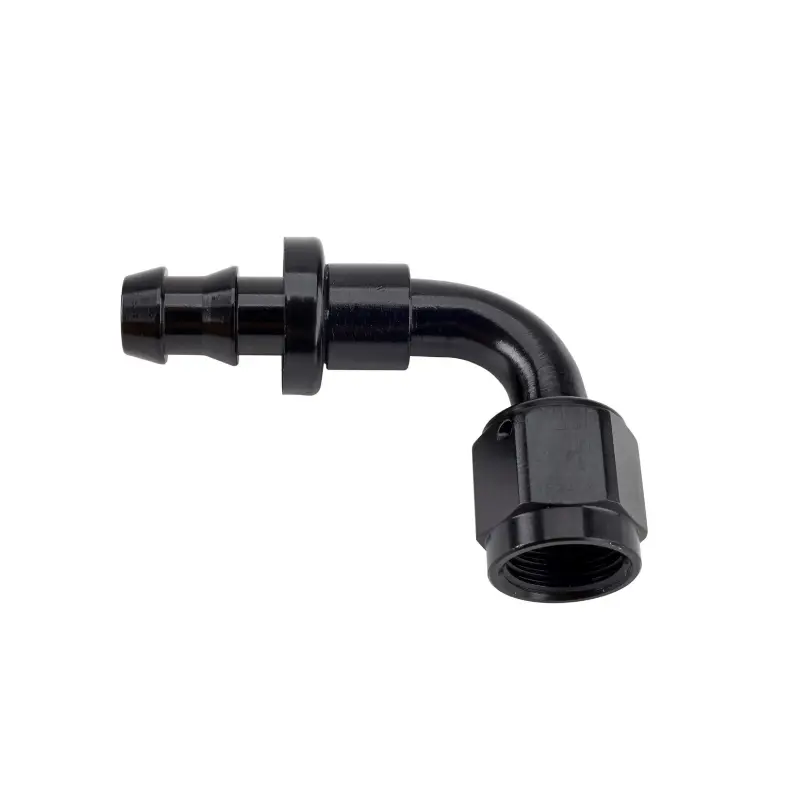

Socketless hose fittings, also known as push-lock or push-on fittings, are designed for quick and easy assembly in low-pressure fluid transfer applications.
Unlike traditional hose fittings that require crimping or specialized tools, socketless fittings utilize internal barbs that grip the hose, creating a secure connection. This design simplifies installation and maintenance, making them a time-saving solution.
Socketless hose fittings are manufactured from a variety of materials, each chosen to suit specific applications and fluid compatibility requirements. Common materials include brass, aluminum, and various types of plastics.
Brass fittings are known for their durability and corrosion resistance, making them suitable for fuel and oil applications.
Aluminum fittings offer a lightweight alternative while maintaining good strength, often used in air and water systems. Plastic fittings, such as those made from nylon or polypropylene, provide excellent chemical resistance and are ideal for corrosive fluids.
The choice of material also depends on the operating temperature and pressure of the application. For high-temperature or high-pressure environments, metal fittings like brass or aluminum are preferred. Plastic fittings are typically used in lower-pressure and temperature settings. The internal barbs and seals within these fittings are often made from elastomeric materials like nitrile or EPDM, ensuring a leak-free connection.
Socketless hose fittings and socket-style fittings represent two distinct approaches to hose assembly, each with its own set of advantages and disadvantages. Socketless fittings, also known as push-lock or push-on fittings, are designed for quick and easy installation without the need for specialized tools or crimping.
They utilize internal barbs to grip the hose, creating a secure connection suitable for low-pressure applications. Socket-style fittings, on the other hand, require a socket and crimping tool to compress the fitting onto the hose, providing a robust connection for high-pressure applications.
Socketless Hose Fittings:
Socket-Style Hose Fittings:
Installing socketless hose fittings is a straightforward process that doesn’t require specialized tools, making it a convenient solution for on-site repairs and installations. Proper installation ensures a secure, leak-free connection, vital for maintaining system integrity.
Here’s a step-by-step guide to install the socketless hose fittings for your project:
Step 1. Prepare the Hose and Fitting
Begin by inspecting the socketless hose and fitting for any damage or debris. Ensure the hose is clean and cut squarely for proper insertion. Cleanliness is crucial to prevent contamination and ensure a tight seal. Select the correct size fitting for the hose’s inner diameter.
Proper preparation is vital for a successful installation. Any dirt or debris on the hose or fitting can compromise the seal and lead to leaks. A clean, square cut on the hose end allows for proper insertion and seating within the fitting. Selecting the correct size ensures a snug fit and prevents slippage or leaks.
Step 2. Lubricate the Hose End
Apply a small amount of lubricant, such as light oil or silicone spray, to the inside and outside of the hose end. This lubrication eases insertion and prevents damage to the hose and fitting during assembly. Avoid using petroleum-based lubricants, as they can degrade certain hose materials.
Lubrication is essential for smooth insertion and to prevent damage. It reduces friction between the hose and fitting, making assembly easier. Using a compatible lubricant ensures the hose material is not compromised, maintaining its integrity and longevity.
Step 3. Push the Hose onto the Fitting
Firmly push the lubricated hose end onto the socketless fitting. Apply steady, even pressure until the hose is fully seated against the fitting’s stop. Ensure the hose is pushed straight onto the fitting to prevent twisting or damage.
Proper insertion is crucial for a secure connection. Push the hose until it stops, ensuring it is fully seated. Twisting or angled insertion can damage the hose or fitting, leading to leaks. Even pressure ensures proper engagement of the fitting’s barbs.
Step 4. Inspect the Connection
After assembly, inspect the connection to ensure the hose is fully seated and securely attached. Check for any signs of damage or leaks. If necessary, gently pull on the hose to verify its secure attachment.
Thorough inspection ensures the connection’s integrity. Verify the hose is fully seated against the fitting’s stop. Gently pulling on the hose confirms a secure attachment. Inspect for any signs of leaks or damage, ensuring a reliable connection.
