Single vs Double Ferrule Fitting: What Are Differences Between Them?

When it comes to high-pressure fluid and gas transfer, selecting the right fitting is crucial. Single and double ferrule fittings are both widely used, but they differ significantly in design and application. Understanding these differences is essential for ensuring a secure, leak-free connection.

This blog post delves into the distinctions between single and double ferrule fittings, exploring their unique features, benefits, and applications. We’ll examine how their designs impact performance and help you determine which type best suits your specific needs, ultimately optimizing your system’s reliability and efficiency.

What Is a Single Ferrule Fitting

A single ferrule fitting is a type of compression fitting used to connect tubing or piping in fluid systems. It consists of a fitting body, a single ferrule (a compression ring), and a nut. When the nut is tightened, the ferrule is compressed between the fitting body and the tubing, creating a seal. This design is relatively simple and cost-effective, making it suitable for lower-pressure applications and less critical systems.

The single ferrule design relies on the ferrule’s deformation to create a seal and grip the tubing. While effective for many applications, it may be less robust in high-pressure or high-vibration environments compared to double ferrule fittings. Single ferrule fittings are commonly used in instrumentation, general industrial applications, and some hydraulic systems where the demands are not excessive.

What Is a Double Ferrule Fitting

A double ferrule fitting, also known as a two-ferrule fitting, is a type of compression fitting designed for high-pressure and critical fluid system applications. It consists of a fitting body, two ferrules (a front ferrule and a back ferrule), and a nut. When the nut is tightened, the ferrules are driven into the fitting body, with the front ferrule creating a seal on the tubing and the back ferrule gripping the tubing to prevent pull-out. This design provides a superior leak-free connection and robust mechanical grip.

The double ferrule design offers enhanced reliability compared to single ferrule fittings, especially in demanding environments. The two-ferrule system provides independent sealing and gripping functions, ensuring better resistance to pressure, temperature variations, and vibrations. This makes double ferrule fittings ideal for applications in industries such as oil and gas, chemical processing, and high-pressure hydraulic systems, where safety and reliability are paramount.

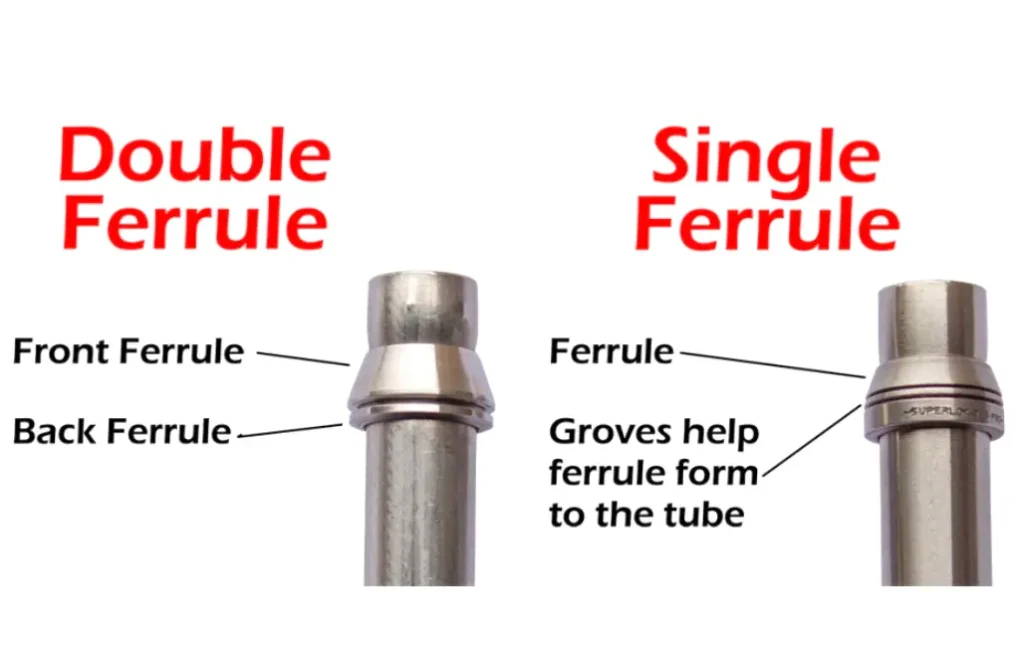

Single vs Double Ferrule Fitting

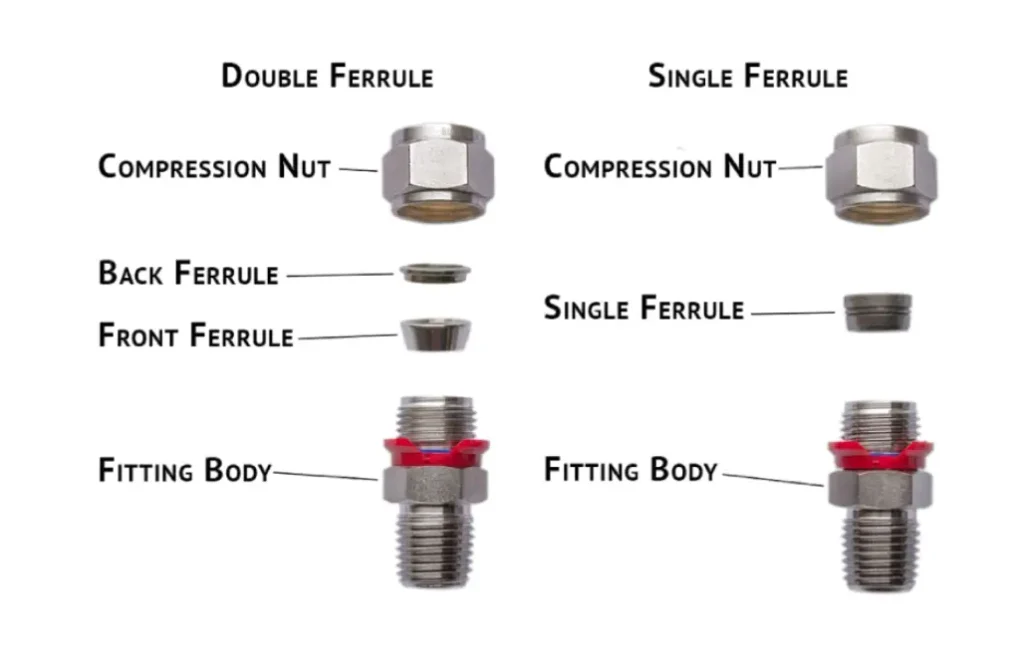

Single and double ferrule fittings serve the same fundamental purpose—connecting tubing or piping—but they differ significantly in design and application. Single ferrule fittings are simpler, consisting of a fitting body, a single ferrule, and a nut.

When tightened, the ferrule deforms to create a seal and grip the tubing. This design is cost-effective and suitable for lower-pressure applications. Double ferrule fittings, on the other hand, feature a fitting body, two ferrules (front and back), and a nut. The front ferrule creates the seal, while the back ferrule grips the tubing, providing enhanced resistance to pressure and vibration.

The key differences lie in their performance and suitability for various applications. Single ferrule fittings are generally easier to install and more economical, but they offer less robust sealing and gripping capabilities compared to double ferrule fittings.

Double ferrule fittings provide superior leak resistance and are preferred for high-pressure, critical applications where reliability is paramount. They withstand greater mechanical stress and temperature fluctuations, making them ideal for industries like oil and gas, chemical processing, and aerospace.

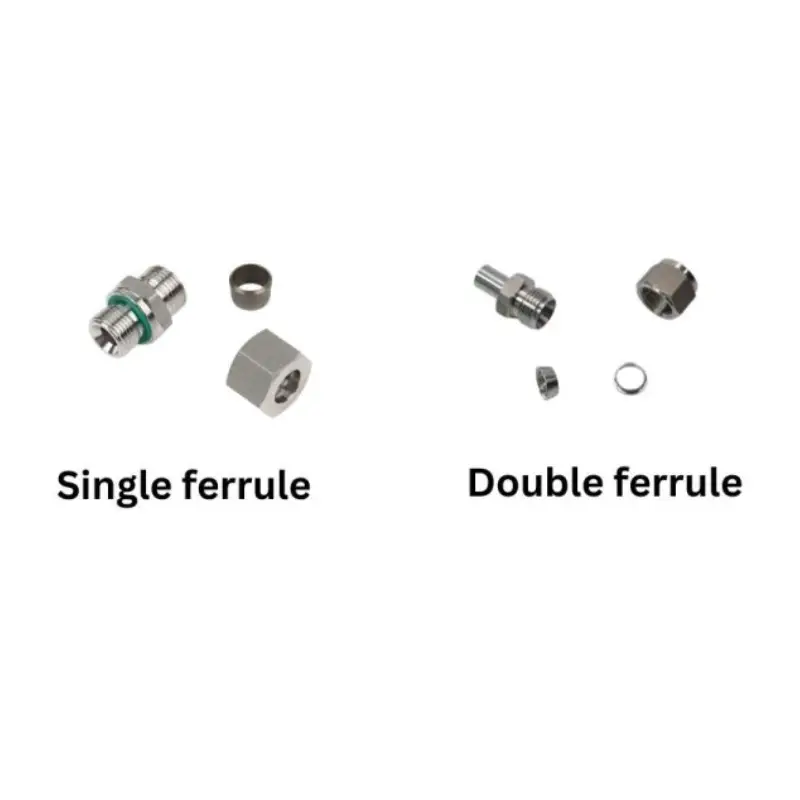

Differences Between Single and Double Ferrule Fittings

How to Choose Single Ferrule Fitting and Double Ferrule Fittings

Choosing between single and double ferrule fittings hinges on the specific demands of your application. Begin by assessing the operating conditions, including pressure, temperature, and vibration levels. Single ferrule fittings are suitable for less demanding environments where pressure and vibration are minimal, offering a cost-effective solution.

Double ferrule fittings, with their robust design, are essential for high-pressure, high-vibration, and critical applications where leak prevention and long-term reliability are paramount.

Next, consider the fluid type and system requirements. Ensure the fitting material is compatible with the fluid to prevent corrosion or degradation. Evaluate the system’s maintenance needs and installation complexity; single ferrule fittings are simpler to install, while double ferrule fittings require more precision.

Finally, prioritize safety and long-term performance, opting for double ferrule fittings in critical applications where failure could have severe consequences.

Operating Conditions:

• Pressure and Temperature: Single ferrules for low to medium, double for high pressure/temp to avoid leaks and failures under extreme conditions.
• Vibration Levels: If the system is subject to high vibrations, double ferrules are better to maintain a secure, leak-free connection.
• Application Criticality: For non critical applications single ferrule fitting is adequate, while double ferrule fitting is needed in critical applications.

Fluid Type and System Requirements:

• Fluid Compatibility: Ensure the fitting material is compatible with the fluid to prevent corrosion and ensure long-term system integrity.
• Installation Complexity: Single ferrules are easier to install, while double ferrules require precision, impacting installation time and expertise.
• Maintenance Needs: Consider the frequency of maintenance; double ferrules offer greater reliability, reducing long-term maintenance needs.
• Safety and Performance: Prioritize safety in critical applications by opting for double ferrules to minimize risks and ensure reliable performance.

Conclusion

In conclusion, understanding the differences between single and double ferrule fittings is crucial for selecting the appropriate connection for your hydraulic system. Single ferrules offer simplicity and cost-effectiveness for less demanding applications, while double ferrules provide superior leak resistance and durability for high-pressure and critical systems. Proper selection ensures optimal performance and safety.

The choice between single and double ferrule fittings depends on the specific requirements of your application, including pressure ratings, vibration levels, and fluid types. Investing in the right fittings minimizes downtime and maintenance costs, ensuring long-term reliability and efficiency.
