What Is a Hydraulic Ferrule? The Ultimate Guide

Hydraulic ferrules are essential components in hydraulic systems, providing a secure and reliable connection between hydraulic hoses and fittings. These cylindrical sleeves are crimped onto the hose end, ensuring a tight seal that withstands high pressures and prevents leaks. Understanding their function and types is crucial for maintaining system integrity and efficiency.

This guide delves into the world of hydraulic ferrules, exploring their materials, applications, and installation processes. By providing a comprehensive overview, it aims to equip readers with the knowledge needed to select and utilize ferrules effectively, ensuring optimal performance and safety in hydraulic applications.

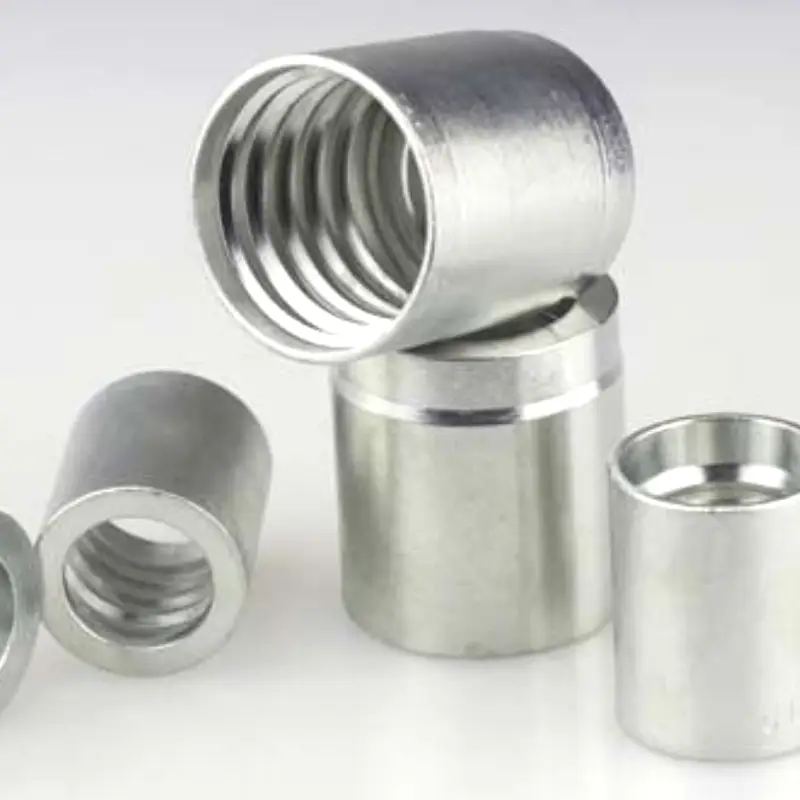

What Is a Hydraulic Ferrule

A hydraulic ferrule is a crucial component in hydraulic hose assemblies, designed to secure the hose end to a fitting. It’s essentially a metal sleeve that is crimped onto the hose, providing a robust connection capable of withstanding high pressures. This crimping process compresses the ferrule, gripping the hose tightly and preventing it from slipping or leaking under pressure.

Hydraulic ferrules are essential for ensuring the integrity and safety of hydraulic systems across various industries, including construction, agriculture, and manufacturing. They are available in various sizes and materials, such as steel or stainless steel, to accommodate different hose types and operating conditions. The precise dimensions and material properties of ferrules are critical for maintaining a reliable and leak-free hydraulic connection.

What Is Hydraulic Ferrule Made of

Hydraulic ferrules are primarily manufactured from metals due to the high-pressure demands of hydraulic systems. The most common material used is carbon steel, which offers excellent strength and durability, making it suitable for a wide range of hydraulic applications.

However, stainless steel is also used, particularly in environments with critical corrosion resistance, such as marine or chemical processing applications. The choice of material ensures the ferrule can withstand the mechanical stresses and environmental conditions it will encounter.

The specific grade and composition of the metal are carefully selected to meet industry standards and application requirements. Factors such as tensile strength, yield strength, and corrosion resistance are considered to ensure the ferrule’s reliability and longevity. The manufacturing process involves precision machining and heat treatment to achieve the desired mechanical properties and dimensional accuracy.

Carbon Steel:

• High strength and durability.
• Suitable for general hydraulic applications.

Stainless Steel:

• Excellent corrosion resistance.
• Used in marine and chemical environments.

Hydraulic Ferrule Manufacturing Considerations:

• Tensile and yield strength.
• Corrosion resistance.
• Precision machining.
• Heat treatment.

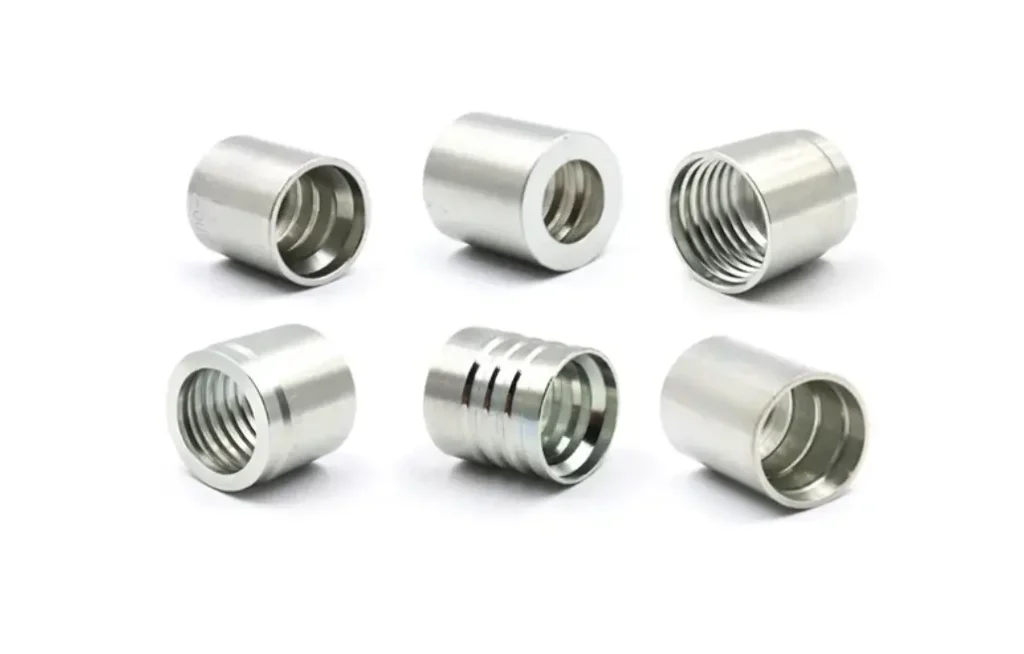

Hydraulic Ferrule Types

Hydraulic ferrules are essential components in hydraulic hose assemblies, providing secure connections under high pressure. Various types cater to specific applications, ensuring optimal performance and safety. Understanding these types is crucial for selecting the right ferrule for your hydraulic system.

One-Piece Hydraulic Ferrules

One-piece hydraulic ferrules are designed as a single, integrated component that is crimped onto the hydraulic hose. Their seamless construction provides a robust and reliable connection, minimizing the risk of leaks and failures. These ferrules are commonly used in high-pressure applications where a strong, durable connection is essential.

Their simplicity and ease of installation make one-piece ferrules a popular choice. The single-piece design eliminates the need for multiple components, reducing assembly time and potential failure points. They are available in various sizes and materials to accommodate different hose types and operating conditions.

Two-Piece Hydraulic Ferrules

Two-piece hydraulic ferrules consist of a separate sleeve and nut that are assembled onto the hydraulic hose. The sleeve is crimped onto the hose, while the nut secures the fitting, providing a strong and reliable connection. These ferrules are often used in applications where frequent assembly and disassembly are required.

Their modular design allows for flexibility and ease of maintenance. The ability to separate the sleeve and nut simplifies hose replacement and fitting adjustments. Two-piece ferrules are available in various configurations to accommodate different hose types and fitting styles.

Interlock Hydraulic Ferrules

Interlock hydraulic ferrules feature a unique locking mechanism that provides a secure connection between the hose and fitting. This design prevents hose slippage and ensures a reliable seal, even under extreme pressure and vibration. These ferrules are commonly used in heavy-duty applications where maximum connection integrity is critical.

Their advanced locking mechanism offers superior performance and durability. Interlock ferrules are designed to withstand high-stress environments, providing a long-lasting and reliable connection. They are available in various sizes and materials to meet the demands of diverse hydraulic systems.

Skive Hydraulic Ferrules

Skive hydraulic ferrules are designed to be used with hoses that have had their outer cover removed, or “skived,” before assembly. This process allows for a more direct metal-to-metal connection between the ferrule and the hose reinforcement, enhancing the connection’s strength and durability. These ferrules are typically used in high-pressure and high-temperature applications.

The skiving process ensures a more secure and reliable connection, especially in demanding environments. Skive ferrules provide excellent resistance to pressure and temperature extremes, making them ideal for heavy-duty hydraulic systems. They are available in various sizes and configurations to accommodate different hose types and fitting styles.

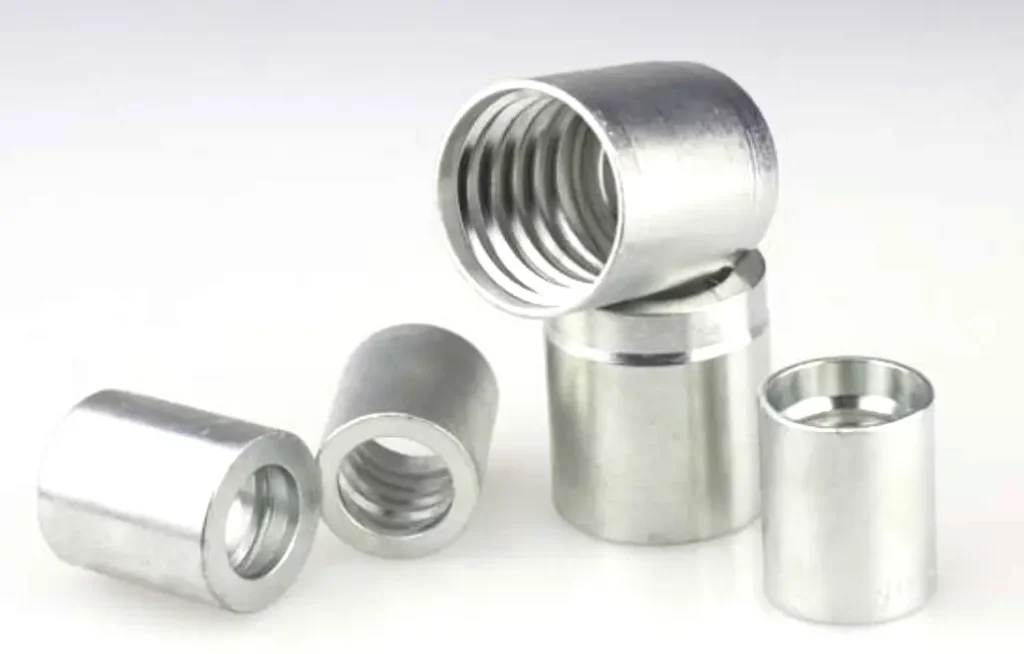

How to Install Hydraulic Ferrules

Installing hydraulic ferrules correctly is crucial for ensuring a secure and leak-free connection in hydraulic hose assemblies. Proper installation prevents costly downtime and potential safety hazards.

Here’s a step-by-step guide to installing hydraulic ferrules:

Step 1. Prepare the Hydraulic Hose and Fitting

Begin by inspecting the hydraulic hose and fitting for any damage or debris. Ensure the hose is cut squarely and the fitting is clean. Select the correct ferrule size and type that matches the hose and fitting. Cleanliness and proper sizing are essential for a reliable connection.

Proper preparation is vital for a successful installation. Any dirt or debris can compromise the seal and lead to leaks. A square cut on the hose ensures proper insertion and seating within the fitting. Selecting the correct ferrule size prevents slippage and ensures a tight, secure fit.

Step 2. Insert the Hose into the Fitting

Carefully insert the hydraulic hose into the fitting, ensuring it is fully seated. The hose should reach the fitting’s stop or the designated insertion depth. Proper insertion is crucial for a secure connection and prevents the hose from being pulled out under pressure.

Full insertion ensures that the ferrule can properly grip the hose, creating a reliable seal. If the hose is not fully inserted, the connection may fail under pressure, leading to leaks or hose slippage. Ensure the hose is aligned straight with the fitting during insertion.

Step 3. Position the Ferrule

Slide the hydraulic ferrule onto the hose until it is positioned correctly over the fitting’s end. Ensure the ferrule is aligned straight with the hose and fitting. Proper positioning is essential for a uniform crimp and a secure connection.

Correct ferrule positioning ensures that the crimping force is applied evenly around the hose. Misaligned ferrules can lead to uneven crimping, resulting in leaks or connection failures. Verify the ferrule is flush with the fitting’s end before proceeding.

Step 4. Crimp the Ferrule

Using a hydraulic crimping tool, crimp the ferrule onto the hose. Follow the hydraulic hose manufacturer’s specifications for crimping pressure and die selection. Ensure the crimp is uniform and secure. Proper crimping is essential for a leak-free connection.

Uniform crimping ensures that the ferrule grips the hose evenly, preventing leaks and ensuring a secure connection. Using the correct crimping pressure and dies is crucial for achieving the desired crimp dimensions. Inspect the crimped ferrule for any signs of damage or deformation.

Step 5. Inspect the Assembly

After crimping, inspect the assembly to ensure the ferrule is securely attached to the hose and fitting. Check for any signs of leaks or damage. Perform a pressure test if necessary to verify the connection’s integrity. Proper inspection ensures a reliable and safe hydraulic connection.

Thorough inspection prevents potential failures and ensures the connection is leak-free. Verify that the ferrule is properly crimped and that the hose is securely held in place. Pressure testing simulates operating conditions and confirms the connection’s reliability.

How to Choose the Best Hydraulic Ferrules

Selecting the best hydraulic ferrules for your system is crucial for ensuring reliable and leak-free connections under high-pressure conditions. Begin by assessing the specific requirements of your hydraulic system, including the operating pressure, temperature, and fluid type. Consider the hose type and size, as well as the fitting style, to ensure compatibility. The ferrule material should also be chosen based on the environment and fluid compatibility to prevent corrosion or degradation.

Next, evaluate the ferrule’s design and construction to ensure it meets industry standards and provides a secure connection. Look for ferrules that offer consistent crimping performance and are manufactured to precise dimensions. Consider the ferrule’s ease of installation and availability, as well as the manufacturer’s reputation for quality and reliability. Choosing the right ferrule will prevent costly downtime and ensure the longevity of your hydraulic system.

• Operating pressure and temperature.
• Fluid type and compatibility.
• Hose type and size.
• Fitting style.
• Material compatibility.
• Design and construction quality.
• Crimping performance.
• Dimensional precision.
• Ease of installation and availability.
• Manufacturer reputation for quality.
• Industry standards compliance.
• Reliability and consistency.

Conclusion

In conclusion, hydraulic ferrules play a critical role in ensuring the integrity and safety of hydraulic systems. Their precise design and material selection are essential for creating leak-free connections under high-pressure conditions. Understanding their types and applications is vital for optimal system performance and longevity.

Proper selection and installation of hydraulic ferrules are crucial for preventing costly downtime and potential hazards. Their ability to withstand extreme pressures and vibrations makes them indispensable in various industrial applications. Regular inspection and maintenance further ensure their reliability and extend the lifespan of hydraulic systems.

For high-quality hydraulic ferrules tailored to your specific needs, request a quote from DF Hydraulics today. We offer a comprehensive range of durable and reliable ferrules, ensuring secure and efficient hydraulic connections. Get in touch to discuss your requirements and benefit from our expert services.
