How to Crimp Hydraulic Ferrules?

Crimping hydraulic ferrules is a critical process in assembling hydraulic hose systems, ensuring secure and leak-free connections. Proper crimping techniques are essential for maintaining the integrity of high-pressure hydraulic lines, preventing costly downtime and potential safety hazards. This guide provides a detailed look at the steps involved in crimping hydraulic ferrules, emphasizing precision and safety.

Understanding the nuances of hydraulic ferrule crimping is vital for anyone working with hydraulic systems. This process involves selecting the correct ferrule, preparing the hose, and using the appropriate crimping tools and dies. Adhering to manufacturer specifications and industry best practices ensures a reliable and long-lasting hydraulic connection.

What Are Hydraulic Ferrules

Hydraulic ferrules are essential components in hydraulic hose assemblies, serving as the critical link between the hose and the fitting. They are typically metal sleeves that are crimped onto the end of a hydraulic hose, providing a secure and reliable connection capable of withstanding high pressures. This crimping process compresses the ferrule, tightly gripping the hose and preventing it from slipping or leaking under operational stress.

These ferrules play a vital role in maintaining the integrity and safety of hydraulic systems across various industries, including construction, agriculture, manufacturing, and transportation. They are available in a range of sizes and materials, such as carbon steel and stainless steel, to accommodate different hose types, pressure ratings, and environmental conditions. The precise dimensions and material properties of hydraulic ferrules are crucial for ensuring a robust and leak-free hydraulic connection.

How to Crimp Hydraulic Ferrules?

Crimping hydraulic ferrules correctly is essential for creating secure, leak-free connections in hydraulic hose assemblies. Proper crimping ensures the ferrule grips the hose firmly, preventing slippage and leaks under high pressure. This process requires precision and the right tools.

Here’s a step-by-step guide about how to crimp hydraulic ferrules in the following:

Tools Needed for Hydraulic Ferrule Crimping:

• Hydraulic Crimping Machine
• Appropriate Crimping Dies (matched to ferrule size)
• Hydraulic Hose Cutter
• Measuring Tape or Caliper
• Marker or Pen
• Safety Glasses and Gloves

Step 1. Prepare the Hydraulic Hose and Ferrule

Begin by inspecting the hydraulic hose and ferrule for any damage or debris. Ensure the hose is cut squarely using a hydraulic hose cutter. Measure and mark the hydraulic hose to the required insertion depth. Select the correct hydraulic ferrule size that matches the hydraulic hose and fittings. Cleanliness and precise measurements are crucial for a reliable crimp.

Proper preparation ensures a clean and accurate crimp. Any debris or damage can compromise the seal and lead to leaks. A square cut allows for even insertion, and precise measurements ensure the ferrule is positioned correctly. Selecting the right ferrule size is essential for a secure grip. We, as manufacturers of hydraulic ferrules, understand the importance of precise hydraulic ferrule sizing for a reliable connection.

This initial step is critical for the overall success of the crimping process. Taking time to properly prepare the hydraulic hose and hydraulic ferrule will prevent issues later. Make sure to double check all measurements and ensure the tools are in good working order.

Step 2. Insert the Hydraulic Hose into the Fitting and Position the Ferrule

Carefully insert the hydraulic hose into the fitting until it reaches the marked insertion depth. Ensure the hose is fully seated against the fitting’s stop. Slide the ferrule onto the hose and position it over the fitting’s end, ensuring it is aligned straight with the hose and fitting. Proper positioning is vital for a uniform crimp.

Full insertion ensures that the ferrule can properly grip the hose, creating a reliable seal. If the hose is not fully inserted, the connection may fail under pressure. Aligning the ferrule straight with the hose and fitting ensures that the crimping force is applied evenly around the hose.

Ensuring the hose and ferrule are correctly positioned before crimping is vital for a strong connection. Verify that the hose is fully inserted and the ferrule is flush with the fitting’s end. Any misalignment or improper insertion can lead to leaks or connection failures.

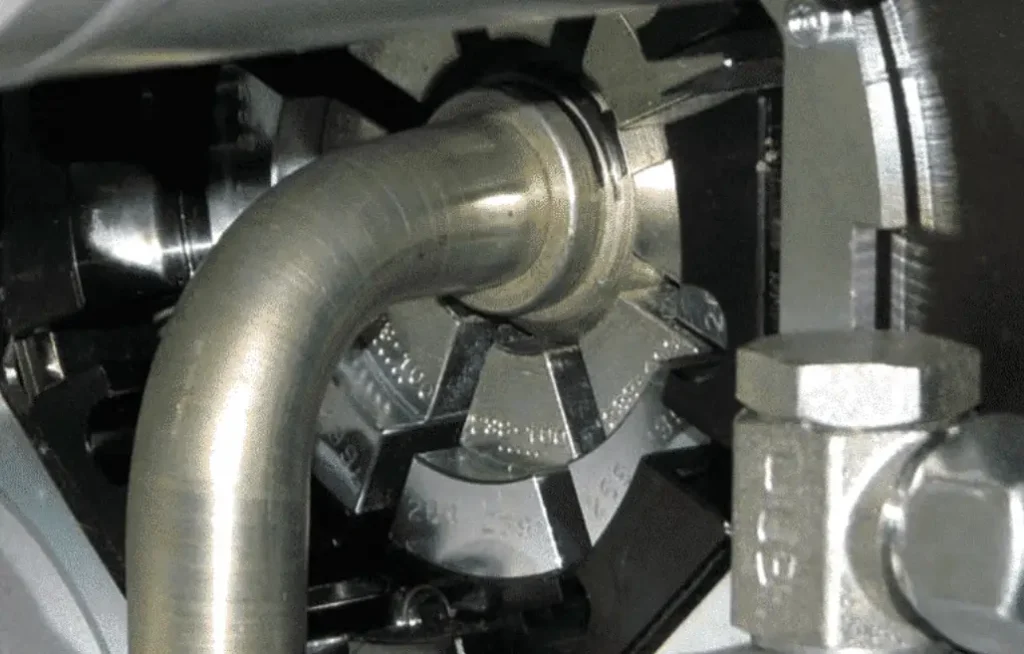

Step 3. Crimp the Ferrule

Using the hydraulic crimping machine and the appropriate crimping dies, crimp the ferrule onto the hose. Follow the manufacturer’s specifications for crimping pressure and die selection. Apply even pressure and ensure the crimp is uniform around the ferrule. Proper crimping is essential for a secure and leak-free connection.

Uniform crimping ensures that the ferrule grips the hose evenly, preventing leaks and ensuring a secure connection. Using the correct crimping pressure and dies is crucial for achieving the desired crimp dimensions. Inspect the crimped ferrule for any signs of damage or deformation.

The crimping process requires precision and care. Ensure the crimping dies are correctly installed and that the machine is calibrated. Apply consistent pressure and monitor the crimp closely. After crimping, verify that the ferrule is securely attached and that the hose is properly held in place.

Step 4. Inspect the Crimped Assembly

After crimping, inspect the assembly thoroughly. Check for any signs of damage, deformation, or uneven crimping. Measure the crimped ferrule to ensure it meets the manufacturer’s specifications. Perform a pressure test if necessary to verify the connection’s integrity. Proper inspection ensures a reliable and safe hydraulic connection.

Thorough inspection is crucial for preventing potential failures and ensuring the connection is leak-free. Verify that the ferrule is properly crimped and that the hose is securely held in place. Pressure testing simulates operating conditions and confirms the connection’s reliability.

This final inspection step ensures the crimped assembly is safe and reliable. Pay close attention to any signs of damage or uneven crimping. Measuring the crimped ferrule confirms that it meets the required dimensions. Pressure testing provides added assurance of the connection’s integrity.

How to Check if Hydraulic Ferrules Are Crimped Correctly

Ensuring hydraulic ferrules are crimped correctly is crucial for the safety and efficiency of hydraulic systems. A poorly crimped ferrule can lead to leaks, system failures, and potential hazards. Proper inspection and testing are essential to verify the integrity of the crimped connection.

Visual Inspection

Begin with a thorough visual inspection of the crimped ferrule. Check for any signs of damage, such as cracks, deformations, or uneven crimping. Ensure the ferrule is flush with the hose and fitting. Verify that the crimp is uniform around the ferrule’s circumference.

Visual inspection provides an initial assessment of the crimp’s quality. Look closely for any irregularities or inconsistencies in the crimp pattern. Ensure the ferrule appears to be securely attached to the hose and fitting. Note any signs of damage or deformation that could indicate a faulty crimp.

Paying close attention to the visual cues is important. Any visible defects or irregularities can indicate a potential problem with the crimp. Ensure the crimp is uniform and that the ferrule is properly seated on the hose and fitting.

Dimensional Measurement

Measure the crimped ferrule using a caliper or micrometer. Compare the measured dimensions with the manufacturer’s specifications. Ensure the crimp diameter and length are within the acceptable range. Proper dimensions indicate a correct crimp.

Dimensional measurement provides precise data on the crimp’s dimensions. Verify that the crimp diameter and length are within the specified tolerances. Any deviations can indicate an improper crimp and potential issues with the connection.

Accurate measurement is crucial for ensuring the crimp meets the required specifications. Use calibrated measuring tools for precise readings. Compare the measured dimensions with the manufacturer’s data to verify the crimp’s quality.

Pull Test

Perform a pull test by applying a tensile force to the crimped assembly. Gradually increase the force and check for any slippage or movement of the hose within the ferrule. A properly crimped ferrule should withstand the specified pull force without any movement.

The pull test simulates the forces the connection will experience under pressure. It verifies the mechanical integrity of the crimp and ensures the hose is securely held in place. Apply the specified pull force and monitor for any signs of slippage or movement.

This test is critical for ensuring the crimp’s strength and reliability. A properly crimped ferrule will withstand the specified pull force without any movement. Any slippage or movement indicates a faulty crimp.

Pressure Test

Conduct a pressure test by subjecting the crimped assembly to the system’s operating pressure. Monitor for any leaks or signs of failure. A properly crimped ferrule should withstand the pressure without any leaks.

The pressure test simulates the operating conditions of the hydraulic system. It ensures the crimp can withstand the pressure without leaking or failing. Apply the specified pressure and monitor for any signs of leaks or failures.

This test is essential for verifying the crimp’s ability to withstand the system’s operating pressure. A properly crimped ferrule will maintain a leak-free seal under pressure. Any leaks or failures indicate a faulty crimp.

Methods to Avoid Hydraulic Ferrule Failure

Preventing hydraulic ferrule failure is crucial for maintaining the integrity and safety of hydraulic systems. Proper selection, installation, and maintenance can significantly reduce the risk of failures. Here are key methods to avoid hydraulic ferrule failure:

Proper Ferrule Selection

Choose ferrules that are compatible with the hose, fitting, and application requirements. Ensure the ferrule material, size, and type match the operating pressure, temperature, and fluid type. Selecting the correct ferrule is the foundation for a reliable connection.

Ferrule selection is paramount for avoiding failures. Using the wrong ferrule can lead to leaks, slippage, or complete connection failure. Verify the manufacturer’s specifications and guidelines to ensure compatibility. Consider the environmental conditions and fluid properties to select the appropriate material and design.

Matching the ferrule to the system’s requirements ensures optimal performance and longevity. Avoid using generic or mismatched ferrules, as they can compromise the connection’s integrity. Consult with hydraulic experts or manufacturers for guidance on selecting the right ferrule for your application.

Correct Hose Preparation and Insertion

Ensure the hydraulic hose is cut squarely and clean before insertion into the fitting. Measure and mark the hose for proper insertion depth. Cleanliness and precise measurements are essential for a secure connection. Improper hose preparation can lead to uneven crimping and leaks.

Proper hose preparation is critical for avoiding ferrule failures. A clean, square cut ensures the hose is fully and evenly seated within the fitting. Any debris or uneven cuts can create weak points or prevent a proper seal. Precise measurements for insertion depth ensure the ferrule is positioned correctly for crimping.

Taking the time to prepare the hose correctly prevents many common ferrule failures. Ensure the hose is free from damage or contamination. Use a specialized hose cutter for a clean, square cut. Double-check the insertion depth to ensure the hose is fully seated against the fitting’s stop.

Proper Crimping Technique

Use a calibrated hydraulic crimping machine with the correct crimping dies. Follow the manufacturer’s specifications for crimping pressure and die selection. Ensure the crimp is uniform around the ferrule. Improper crimping can lead to leaks or connection failures.

Correct crimping technique ensures the ferrule grips the hose evenly and securely. Using the right crimping dies and pressure is crucial for achieving the desired crimp dimensions. Calibrate the crimping machine regularly to maintain accuracy. Monitor the crimping process to ensure uniformity and consistency.

Proper crimping prevents common ferrule failures such as slippage and leaks. Verify the crimping machine is in good working condition. Apply consistent pressure and monitor the crimp closely. Inspect the crimped ferrule for any signs of damage or deformation.

Regular Inspection and Maintenance

Inspect hydraulic hose assemblies regularly for signs of wear, damage, or leaks. Check for corrosion, cracks, or deformations in the ferrules. Perform pressure tests to verify the connection’s integrity. Regular maintenance and timely replacements prevent failures.

Regular inspection and maintenance are essential for preventing ferrule failures. Early detection of wear or damage allows for timely replacements. Pressure testing simulates operating conditions and confirms the connection’s reliability. Keep detailed records of inspections and maintenance activities.

Proactive maintenance extends the lifespan of hydraulic systems and prevents unexpected failures. Ensure all personnel are trained to identify potential issues. Replace any damaged or worn components immediately. Implement a regular inspection schedule to monitor the condition of hydraulic hose assemblies.

Conclusion

In conclusion, properly crimping hydraulic ferrules is essential for creating secure, leak-free connections in hydraulic systems. Adhering to precise procedures and using the correct tools ensures optimal performance and safety. A well-executed crimp prevents costly downtime and potential hazards, maintaining the integrity of the hydraulic system.

Consistent crimping techniques and adherence to manufacturer specifications are critical for reliable connections. Regular inspection and maintenance of crimping tools and ferrules further ensure consistent quality and prevent failures. Understanding the nuances of crimping hydraulic ferrules is vital for anyone working with hydraulic systems.
