NPTF, or National Pipe Taper Fuel, threads are essential in high-pressure hydraulic and pneumatic systems, providing leak-free connections without additional sealants. This comprehensive guide delves into the specifics of NPTF fittings, exploring their design, applications, and installation best practices. Understanding NPTF threads is crucial for ensuring system integrity and preventing costly leaks.
This blog will cover the unique characteristics of NPTF threads, including their tapered design and dryseal capabilities. We’ll discuss the materials used, installation techniques, and maintenance tips to optimize performance. Whether you’re a seasoned professional or a beginner, this guide will provide valuable insights into selecting and using NPTF fittings effectively.
What Is NPTF
What does NPTF stand for?
NPTF, which stands for National Pipe Taper Fuel, is a U.S. standard thread type primarily used in hydraulic and pneumatic systems for creating leak-free connections without the need for additional sealants. It’s designed as a “dryseal” thread, meaning the tapered threads themselves crush and deform during tightening, creating a robust, metal-to-metal seal. This tapered design is crucial for achieving a tight, leak-resistant connection in high-pressure applications.
The tapered nature of NPTF threads, combined with their specific pitch and dimensions, allows for a tight fit that effectively seals against fluid or gas leakage. This makes NPTF threads particularly suitable for demanding applications where leaks are unacceptable, such as in fuel, oil, and high-pressure hydraulic systems. The dryseal characteristic of NPTF threads is a key advantage, simplifying assembly and ensuring reliability.

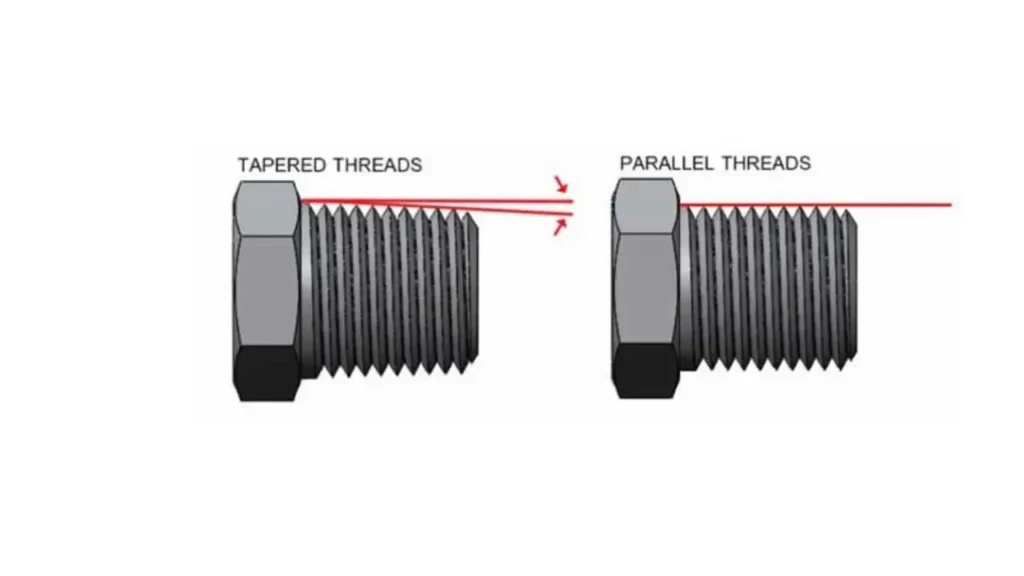

NPTF vs NPT
NPTF and NPT threads are both tapered pipe threads used in fluid power systems, but they differ significantly in their design and sealing mechanisms. Understanding these differences is crucial for selecting the appropriate fittings for your hydraulic or pneumatic systems.
Here’s difference between NPT and NPTF:
Thread Design and Sealing Mechanism
NPTF (National Pipe Taper Fuel) threads are designed to create a “dryseal” connection, meaning they seal without the need for additional sealants. The tapered threads are slightly truncated, causing them to crush and deform during tightening, creating a metal-to-metal seal. This design is crucial for high-pressure applications where leaks are unacceptable, as it ensures a robust and reliable connection.
NPT (National Pipe Taper) threads, while also tapered, are not designed for dryseal applications. They require the use of thread sealants, such as Teflon tape or pipe dope, to prevent leaks. The tapered threads provide a mechanical seal, but the sealant fills any gaps between the threads, ensuring a leak-free connection. This makes NPT suitable for a wider range of applications, including low-pressure systems where sealants are acceptable.
Application and Compatibility
NPTF threads are commonly used in high-pressure hydraulic and pneumatic systems, particularly in applications involving fuels, oils, and gases. Their dryseal design makes them ideal for demanding environments where leaks are critical and sealants are undesirable. These fittings are often found in automotive, aerospace, and industrial applications where system integrity is paramount.
NPT threads are more versatile and widely used in various applications, including plumbing, gas lines, and low-pressure hydraulic systems. Their reliance on sealants allows for flexibility in different environments and fluid types. NPT fittings are commonly found in residential, commercial, and industrial settings where a reliable seal is needed, but dryseal capabilities are not essential. However, because of the use of sealant, the assembly of NPT connections is less clean, and may not be desirable in certain critical applications.

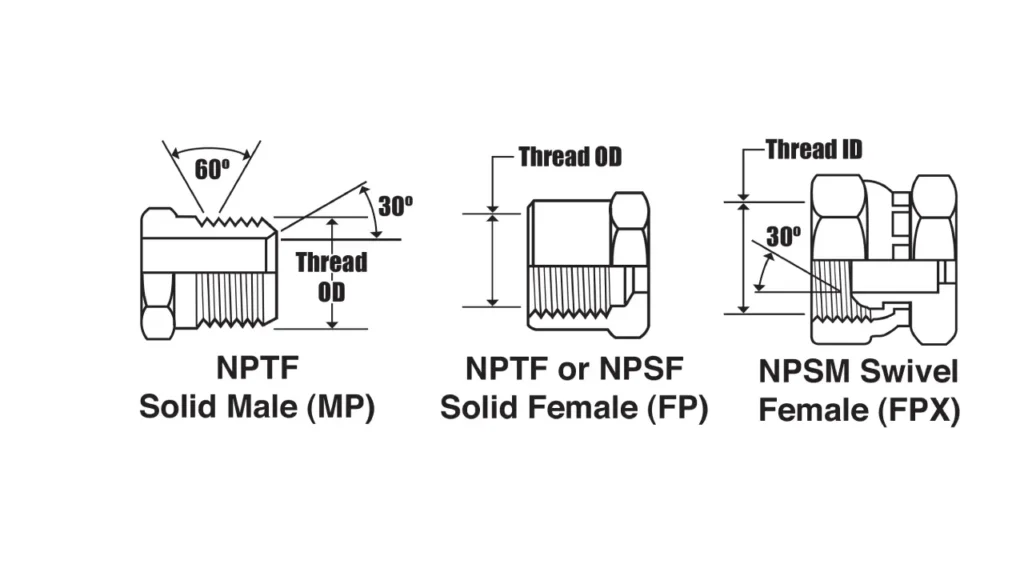

NPTF vs NPSM
NPTF and NPSM threads are both used in fluid power systems, but they differ significantly in their design, sealing mechanisms, and applications. Understanding these differences is crucial for selecting the appropriate fittings for your hydraulic or pneumatic systems. Here’s a breakdown of their key distinctions:
Thread Design and Sealing Mechanism
NPTF (National Pipe Taper Fuel) threads are tapered, meaning their diameter decreases along their length. This tapered design allows the threads to crush and deform during tightening, creating a metal-to-metal “dryseal” without the need for additional sealants. This is crucial for high-pressure applications where leaks are unacceptable. The tapered threads ensure a tight fit, effectively preventing fluid or gas leakage.
NPSM (National Pipe Straight Mechanical) threads, on the other hand, are straight, maintaining a constant diameter along their length. This straight thread design necessitates the use of a mechanical seal, such as an O-ring or gasket, to create a leak-free connection. The seal is formed by an external component, not by the threads themselves. This mechanical seal allows for easier assembly and disassembly, making NPSM suitable for applications where frequent connections are required.
Application and Compatibility
NPTF threads are commonly used in high-pressure hydraulic and pneumatic systems, particularly in applications involving fuels, oils, and gases. Their dryseal design makes them ideal for demanding environments where leaks are critical and sealants are undesirable. These fittings are often found in automotive, aerospace, and industrial applications where system integrity is paramount.
NPSM threads are typically used in lower to medium-pressure applications where frequent assembly and disassembly are required. Their mechanical seal design, relying on O-rings or gaskets, allows for easier connections and disconnections without damaging the threads. These fittings are commonly used in fluid transfer systems, instrumentation, and other applications where a reliable seal is needed, but high pressure is not a primary concern. It is important to remember that NPSM threads are designed to connect to other NPSM threads.
Are NPT and NPTF Compatible?
The compatibility between NPT (National Pipe Taper) and NPTF (National Pipe Taper Fuel) threads is a nuanced issue. While they share similarities, their differences can lead to potential problems.
Technical Compatibility:
NPT and NPTF threads have the same basic taper and pitch, meaning they can physically thread together. However, their thread forms differ slightly. NPTF threads are designed for a “dryseal,” creating a metal-to-metal seal without sealant. NPT threads rely on sealant to fill gaps.
This difference means that while they can be connected, the seal’s reliability is questionable. An NPTF male into an NPT female, or vice versa, may result in leaks, especially in high-pressure applications. Therefore it is always recommended to use thread sealant when mixing the two thread types.
Practical Considerations:
- For critical applications where leaks are unacceptable, mixing NPT and NPTF is generally discouraged. The potential for leaks and thread damage outweighs any perceived convenience.
- In less critical applications, using sealant might allow for a temporary or less critical connection. However, for optimal performance and safety, it’s best to use fittings with the same thread standard.
It is always best practice to use the correct mating fitting for the application.
In essence, while they can physically connect, it’s not always advisable, especially in high-pressure or critical scenarios.
How to Choose the Best NPTF Threads
Choosing the best NPTF (National Pipe Taper Fuel) threads for your hydraulic or pneumatic system is crucial for ensuring leak-free and reliable connections. Proper selection depends on several factors, including the application’s pressure requirements, fluid type, and environmental conditions. Evaluating these considerations carefully will prevent costly downtime and potential safety hazards.
When selecting NPTF threads, prioritize high-quality materials and precise manufacturing. Ensure the threads meet or exceed industry standards, such as SAE or ISO, to guarantee compatibility and performance. Consider the thread’s size and length to match your system’s specifications, and verify the fitting’s pressure rating to handle the maximum operating pressure. Consulting with hydraulic specialists or manufacturers can provide valuable guidance and prevent costly mistakes.
- Pressure Rating: Ensure the NPTF threads can withstand the maximum operating pressure of your system.
- Fluid Compatibility: Verify the fitting material is compatible with the fluid being used to prevent corrosion or degradation.
- Temperature Range: Select threads that can operate within the system’s temperature range without compromising the seal.
- Environmental Conditions: Consider factors like humidity, chemical exposure, and vibration that may affect the fitting’s performance.
- Industry Standards: Choose threads that meet or exceed relevant industry standards for quality and reliability.
- Thread Size and Length: Match the thread size and length to your system’s specifications for proper fit and function.
- Material Quality: Select fittings made from high quality materials.
- Manufacturer Reputation: Choose a manufacturer with a reputation for quality and reliability.
Conclusion
In conclusion, NPTF fittings are essential for creating reliable, leak-free connections in high-pressure hydraulic and pneumatic systems. Their tapered thread design, forming a dryseal, eliminates the need for additional sealants, ensuring robust performance. Understanding their specifications and proper installation is crucial for maximizing system integrity.
The durability and leak resistance of NPTF fittings make them ideal for demanding applications across various industries. Proper selection based on pressure ratings, fluid compatibility, and application requirements ensures optimal performance and longevity. Regular inspections and maintenance further enhance their reliability.
