NPS (National Pipe Straight) threads are a crucial component in fluid transfer systems, providing reliable connections for pipes and fittings. Unlike tapered threads, NPS threads maintain a constant diameter, necessitating the use of gaskets or O-rings for sealing. Understanding their specifications and applications is essential for ensuring leak-free performance.
This guide delves into the intricacies of NPS threads, exploring their various types, applications, and selection criteria. We’ll examine their role in hydraulic, pneumatic, and plumbing systems, providing insights into proper installation and maintenance. Whether you’re an engineer or a DIY enthusiast, this comprehensive overview will equip you with the knowledge to make informed decisions regarding NPS threads.

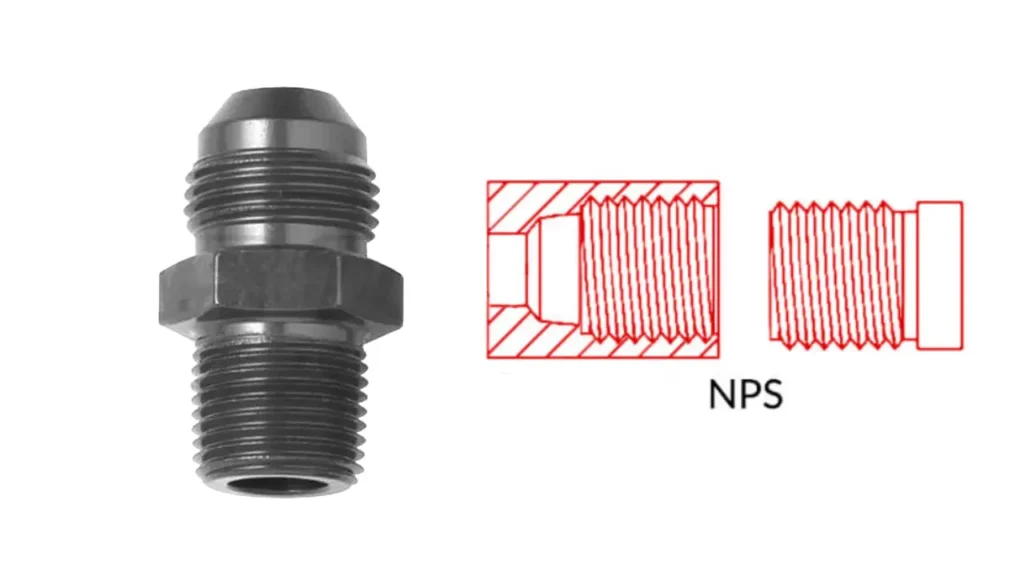

What Is NPS Thread
NPS, which stands for National Pipe Straight, is a U.S. standard thread type used in fluid power systems for creating mechanical seals. Unlike tapered pipe threads, NPS threads are straight, meaning they maintain a constant diameter along their length. This straight thread design necessitates the use of a mechanical seal, such as an O-ring or gasket, to prevent leaks.
NPS threads are commonly found in applications where frequent assembly and disassembly are required, such as in certain hydraulic and pneumatic connections. The mechanical seal provided by an O-ring or gasket allows for easy disconnection and reconnection without damaging the threads or compromising the seal. While effective, NPS is generally preferred for lower-pressure applications compared to tapered thread types, due to its reliance on external sealing elements.
What Is NPS Thread Made of
NPS threads, like other pipe threads, are typically machined into fittings made from various materials depending on the application’s requirements. The most common materials include carbon steel, stainless steel, and brass. Each material offers distinct properties that cater to different operating conditions and fluid types.
Carbon Steel:
This is widely used due to its strength and cost-effectiveness. Carbon steel fittings are suitable for general hydraulic and pneumatic applications.
Stainless Steel:
This is preferred for applications requiring corrosion resistance, such as in marine environments or chemical processing.
Brass:
This is often used in low-pressure applications or where specific fluid compatibility is needed, such as with water or air.
The selection of material for NPS threaded fittings is critical for ensuring compatibility with the system’s fluid and operating environment. Factors like pressure, temperature, and chemical exposure influence the choice. Proper material selection prevents corrosion, leaks, and premature failures, ensuring the system’s reliability and longevity.
How to Install NPS Threads
Installing NPS (National Pipe Straight) threads correctly is crucial for ensuring leak-free connections in fluid power systems. Proper installation prevents costly downtime and potential safety hazards. This guide outlines the essential steps for installing NPS threads, emphasizing precision and adherence to manufacturer specifications.
Step 1: Prepare the Threads and Sealing Surface
Begin by thoroughly cleaning both the male and female NPS threads to remove any debris, dirt, or metal shavings. Inspect the threads for damage or imperfections that could compromise the seal. Ensure the sealing surface, where the O-ring or gasket will sit, is clean and smooth. Proper preparation prevents leaks and ensures a secure connection.
Cleanliness is paramount for a reliable seal. Any contaminants can interfere with the O-ring or gasket, leading to leaks and system failures. Damaged threads should be repaired or replaced to prevent leaks and ensure proper engagement. A smooth sealing surface ensures the O-ring or gasket compresses evenly, creating a tight seal.
Step 2: Select and Install the Appropriate Seal
Choose an O-ring or gasket that is compatible with the fluid and operating conditions of your system. Ensure the seal is the correct size and material for the NPS threads. Lubricate the seal lightly with a compatible lubricant to facilitate assembly and prevent damage. Carefully place the seal onto the sealing surface of the female fitting or into the groove of the male fitting.
Proper seal selection is crucial for preventing leaks and ensuring long-term reliability. The seal material must withstand the fluid’s chemical properties and the system’s temperature and pressure. Lubrication reduces friction during assembly, preventing the seal from tearing or deforming. Correct placement ensures the seal compresses evenly, creating a tight, leak-free connection.
Step 3: Align and Thread the Fittings
Carefully align the male and female NPS threads, ensuring they are straight and perpendicular to each other. Begin threading the fittings by hand, turning them clockwise. Avoid cross-threading, which can damage the threads and compromise the seal. Continue threading until the fittings are hand-tight.
Proper alignment prevents cross-threading and ensures the threads engage correctly. Cross-threading can damage the threads, leading to leaks and premature failures. Hand-tightening ensures the fittings are properly seated before applying torque. Avoid using excessive force, which can damage the threads or deform the seal.
Step 4: Tighten the Fittings to the Specified Torque
Using a torque wrench, tighten the fittings to the manufacturer’s specified torque. Ensure the torque is applied evenly and gradually to prevent damage to the threads or seal. Over-tightening can deform the seal or strip the threads, leading to leaks. Under-tightening can result in a loose connection and leaks.
Proper torque ensures the seal compresses evenly, creating a tight, leak-free connection. A torque wrench provides accurate tightening, preventing over-tightening or under-tightening. Follow the manufacturer’s specifications for torque to ensure optimal performance and prevent damage. After tightening, inspect the connection for leaks and verify the seal’s integrity.

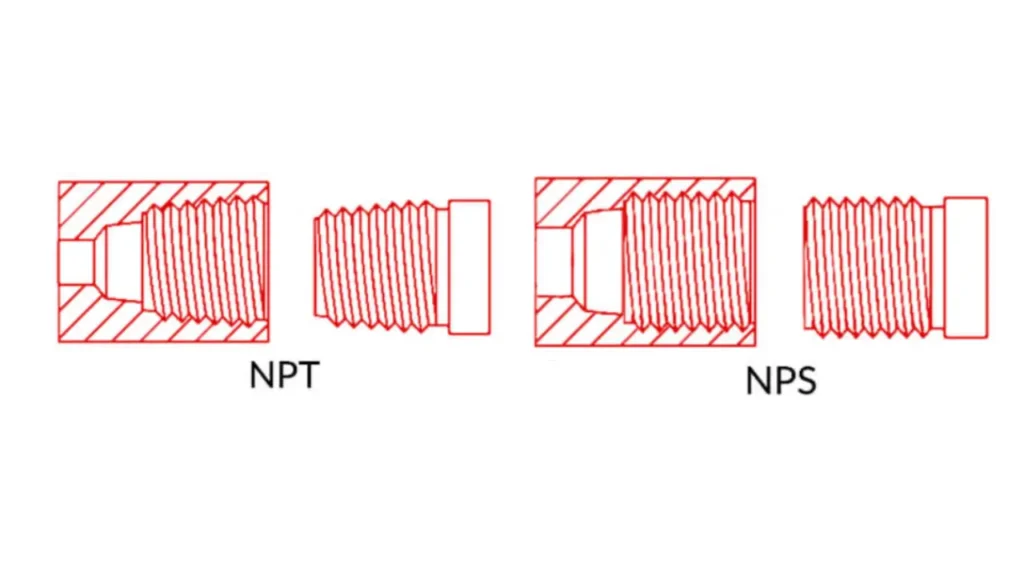

NPT vs NPS
NPT (National Pipe Taper) and NPS (National Pipe Straight) are two distinct thread types used in fluid power systems, each with unique characteristics and applications. Understanding their differences is crucial for selecting the appropriate fittings and ensuring leak-free connections.
Thread Design and Sealing Mechanism
NPT threads are tapered, meaning their diameter decreases along their length. This tapered design allows the threads to crush and deform during tightening, creating a mechanical seal. However, to insure a proper leak free seal, a thread sealant such as teflon tape, or pipe dope, is required. This “dryseal” characteristic, in conjunction with the sealant, is essential for high-pressure applications where leaks are unacceptable. The tapered nature of NPT threads ensures a tight fit, effectively preventing fluid or gas leakage when combined with a proper sealant.
NPS threads, This straight thread design necessitates the use of a mechanical seal, such as an O-ring or gasket, to create a leak-free connection. The seal is formed by an external component, not by the threads themselves. This mechanical seal allows for easier assembly and disassembly, making NPS suitable for applications where frequent connections are required.
Application and Pressure Ratings
NPT threads are commonly used in high-pressure hydraulic and pneumatic systems where a reliable, leak-free seal is critical. Their design makes them ideal for applications involving fuels, oils, and other fluids under high pressure. These fittings are often found in automotive, industrial, and aerospace applications where system integrity is paramount.
NPS threads are typically used in lower to medium-pressure applications where frequent assembly and disassembly are required. Their mechanical seal design, relying on O-rings or gaskets, allows for easier connections and disconnections without damaging the threads. These fittings are commonly used in fluid transfer systems, instrumentation, and other applications where a reliable seal is needed but high pressure is not a primary concern.
NPS vs NPSM
NPS and NPSM threads are both National Pipe Straight thread types, but they differ in their sealing mechanisms and applications. Understanding these differences is crucial for selecting the appropriate fittings for your fluid power systems.
Sealing Mechanism
NPS threads rely on a mechanical seal, typically an O-ring or gasket, to create a leak-free connection. The straight thread design necessitates the use of an external sealing element, as the threads themselves do not deform or crush to create a seal. This mechanical seal allows for easy assembly and disassembly, making NPS suitable for applications where frequent connections are required.
NPSM threads also utilize a mechanical seal, primarily an O-ring or gasket, to prevent leaks. However, NPSM threads are specifically designed to mate with other NPSM threads, creating a metal-to-metal seal in addition to the mechanical seal. This dual sealing mechanism provides enhanced leak resistance and is often preferred in applications where a more robust seal is needed, though still relying on the O-ring or gasket.
Application and Compatibility
NPS threads are commonly used in various low to medium-pressure applications, such as in fluid transfer systems, instrumentation, and pneumatic connections. Their ease of assembly and disassembly makes them suitable for applications where frequent maintenance or component changes are required. However, they are less ideal for high-pressure systems due to their reliance on external seals.
NPSM threads are primarily designed for connecting mechanical pipe fittings. Therefore it is vital to know, that NPSM is designed to mechanically connect to other NPSM threaded connections. Due to that fact, NPSM connections are found in many areas within hydraulic applications. It is important to remember that NPSM connections are intended to be used with the use of a sealing device.
How to Choose the Best NPS Thread
Selecting the best NPS thread for your application requires careful consideration of several factors to ensure a leak-free and reliable connection. Proper selection prevents costly downtime and potential safety hazards. Evaluate the pressure requirements, fluid compatibility, and application-specific needs to determine the most suitable NPS thread type and material.
- Pressure Requirements
- Fluid Compatibility
- Application-Specific Needs
- Material Selection
- Seal Type
- Assembly and Disassembly Frequency
Consider the maximum operating pressure of your system. NPS threads are generally used in low to medium-pressure applications, relying on mechanical seals like O-rings or gaskets. Ensure the chosen thread and seal material can withstand the system’s pressure without failure. Evaluate the fluid type and its compatibility with the thread and seal materials. Certain fluids can corrode or degrade incompatible materials, leading to leaks and failures. Choose materials that are resistant to the fluid’s chemical properties. Assess the application’s specific needs, such as temperature variations, vibration, and environmental conditions, to ensure the selected NPS thread can perform reliably.
Conclusion
In conclusion, understanding NPS threads is essential for ensuring reliable connections in fluid power systems. Their straight thread design, requiring mechanical seals, distinguishes them from tapered threads like NPT. Proper selection based on application requirements minimizes leaks and optimizes system performance.
The versatility of NPS threads, coupled with their ease of assembly and disassembly, makes them suitable for various low to medium-pressure applications. However, their reliance on external seals necessitates careful material selection to ensure compatibility with system fluids. Proper installation and maintenance further enhance their longevity.
