In fluid transfer systems, the choice between straight and tapered threads is crucial for ensuring leak-free and efficient operation. Straight threads, designed for mechanical connections, offer ease of assembly but often require additional sealing methods. Tapered threads, on the other hand, are engineered to create a pressure-tight seal through thread compression, ideal for high-pressure applications.
Understanding the fundamental differences between these thread types is essential for selecting the appropriate fittings for specific applications. Straight threads, like those found in NPSM fittings, rely on O-rings or bonded seals to prevent leaks. Conversely, tapered threads, such as NPT and BSPT, achieve sealing through the threads’ conical shape. This blog will explore these distinctions, providing insights to guide your selection process.

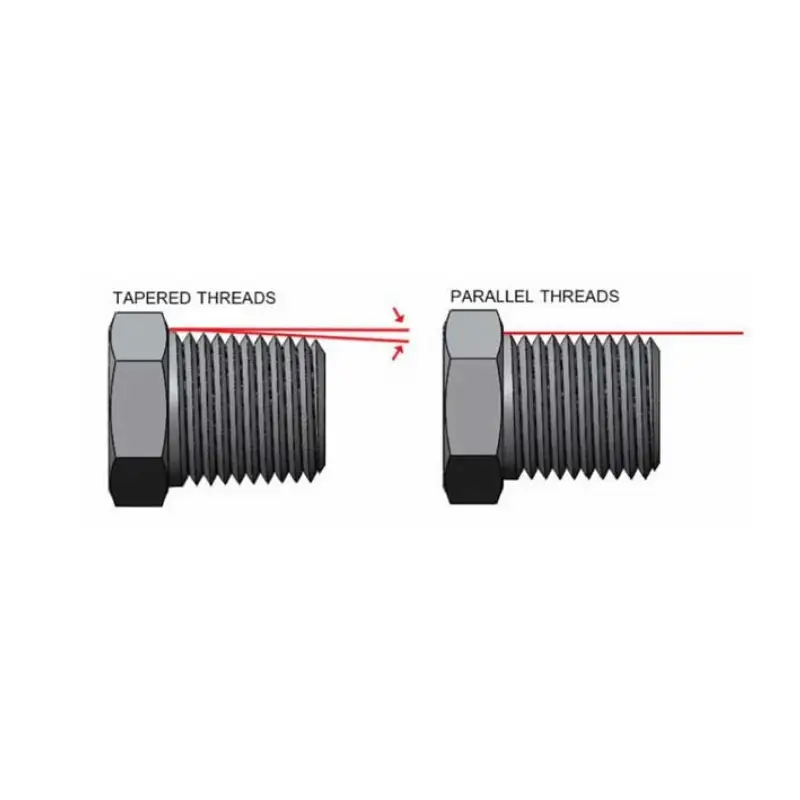

What Is Straight Thread
Straight threads, also known as parallel threads, maintain a constant diameter along their length. Unlike tapered threads, they do not create a mechanical seal through thread compression. Instead, they rely on external sealing methods, such as O-rings, bonded seals, or washers, to prevent leaks. Straight threads are commonly used in applications where a robust mechanical connection is required, and sealing is achieved through separate components.
What Is Tapered Thread
Tapered threads, in contrast to straight threads, have a diameter that changes along their length. This tapered design allows the threads to compress against each other as they are tightened, creating a mechanical seal that effectively prevents leaks. This characteristic makes tapered threads particularly well-suited for high-pressure applications in fluid and gas transfer systems, where a robust, leak-free connection is essential.

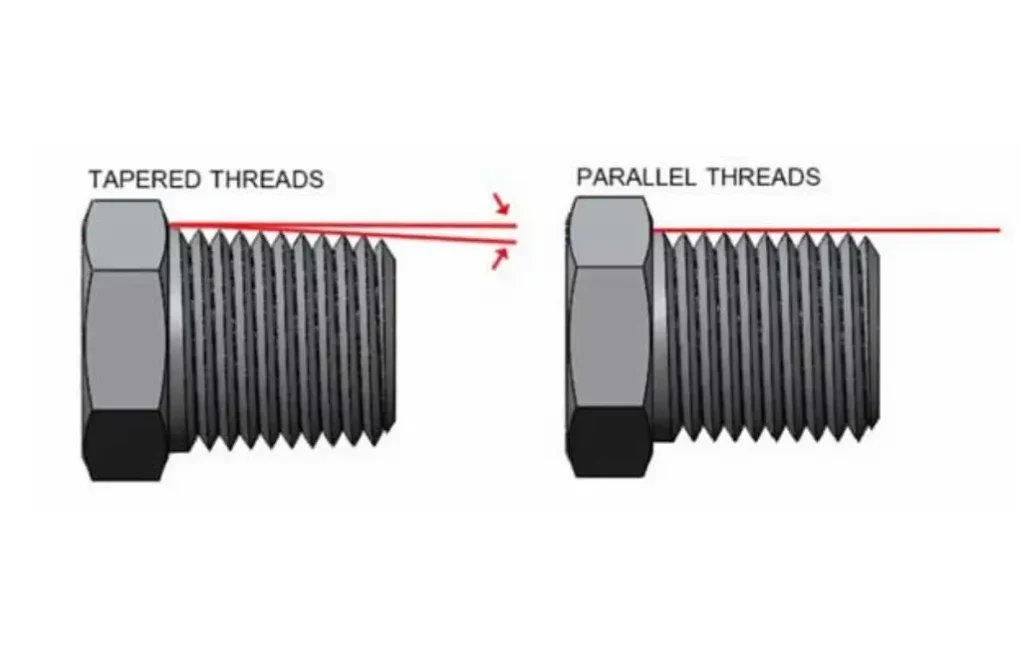

Straight Thread vs Tapered Thread
Straight and tapered threads are fundamental components in fluid transfer systems, each designed with distinct characteristics to serve specific purposes. Understanding their differences is crucial for selecting the appropriate thread type to ensure optimal system performance and leak prevention.
Straight Threads
Straight threads, also known as parallel threads, maintain a consistent diameter along their length. This design necessitates the use of external sealing methods, such as O-rings, bonded seals, or washers, to prevent leaks.
These straight threads are primarily used for mechanical connections where a robust joint is required, but separate components handle the sealing function. The constant diameter allows for easy assembly and disassembly, making them suitable for applications requiring frequent maintenance.
- Constant Diameter: The thread diameter remains uniform along its length, ensuring a consistent fit.
- External Sealing: Requires O-rings, bonded seals, or washers to create a leak-proof connection.
- Mechanical Connections: Primarily used for robust mechanical joints, prioritizing structural integrity.
- Easy Assembly/Disassembly: The parallel design simplifies assembly and disassembly, beneficial for maintenance.
Tapered Threads
Tapered threads, on the other hand, feature a diameter that changes along their length. This design enables the threads to compress against each other as they are tightened, creating a mechanical seal that effectively prevents leaks. This self-sealing tapered thread characteristic makes tapered threads ideal for high-pressure applications in fluid and gas transfer systems. The tapered design ensures a tight fit, minimizing the need for external sealants in many cases.
- Variable Diameter: The thread diameter changes along its length, creating a tapered shape.
- Mechanical Seal: Creates a leak-proof seal through thread compression when tightened.
- High-Pressure Applications: Ideal for systems with significant internal pressure, like hydraulic and pneumatic systems.
- Self-Sealing: Often eliminates the need for external sealants, simplifying installation.

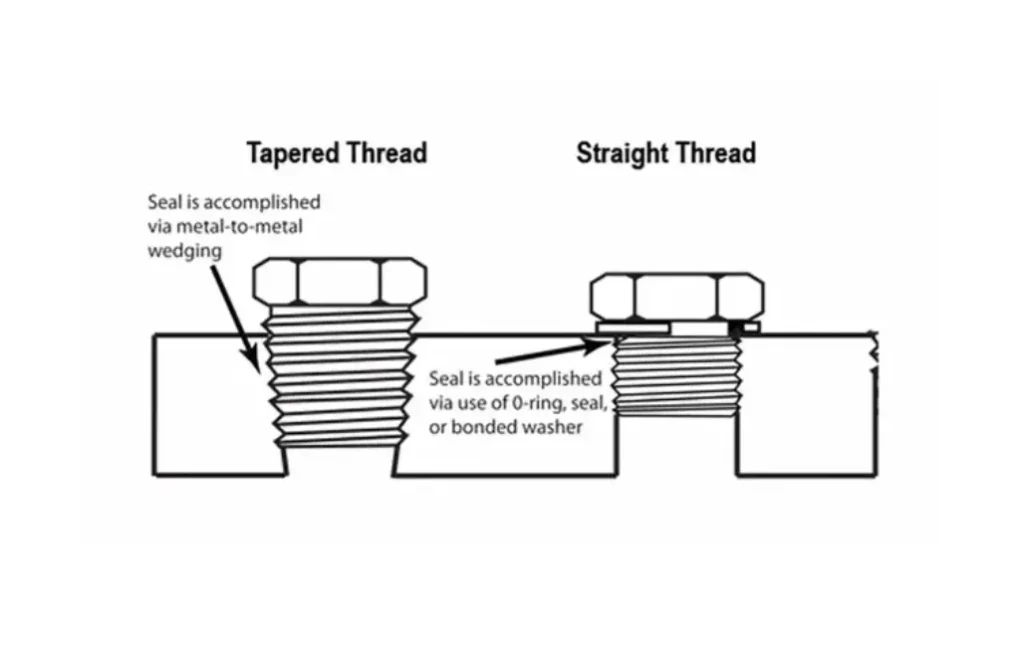

Differences Between Straight Thread and Tapered Thread in the following:
| Feature | Straight Thread | Tapered Thread |
| Diameter | Constant | Variable |
| Sealing Method | External seals (O-rings, washers) | Thread compression |
| Pressure Application | Low to moderate | High |
| Assembly/Disassembly | Easy | Requires more torque |
| Primary Use | Mechanical Connections | Pressure tight Connections |
| Sealant use | Required | often not Required |
How to Choose Straight Thread and Tapered Thread
Selecting between straight and tapered threads depends heavily on the application’s requirements. For low to moderate pressure applications where frequent assembly and disassembly are necessary, straight threads paired with appropriate external seals are often the ideal choice.
They provide a robust mechanical connection and are easier to assemble. However, for high-pressure systems where leak prevention is paramount, tapered threads are the standard. Their self-sealing design minimizes the need for external sealants, ensuring a reliable connection.
Consider the operating environment and the type of fluid or gas being conveyed. Straight threads may be preferred in applications where vibration or thermal expansion could compromise a tapered thread’s seal. Additionally, assess the material compatibility of the threads with the fluid being transferred to prevent corrosion or degradation. Ensure the thread size and pitch are compatible with the connecting components, and evaluate the ease of installation and maintenance for long-term system reliability.
Finally, evaluate the level of sealing required. For applications where even minor leaks are unacceptable, tapered threads are typically the best option. If sealing is less critical and external sealants are acceptable, straight threads may suffice. Always consult industry standards and guidelines to ensure the chosen thread type meets the specific requirements of your application.
- Application pressure and frequency of assembly/disassembly: For low to moderate pressure applications requiring frequent assembly and disassembly, straight threads are often favored due to their ease of connection and disconnection, simplifying maintenance and adjustments. However, high-pressure systems necessitate tapered threads for their superior sealing capabilities.
- Operating environment and fluid/gas type: In environments with vibration or thermal expansion, straight threads with external seals can provide a more reliable connection, as these conditions might compromise a tapered thread’s seal. Additionally, the material compatibility of the threads with the conveyed fluid or gas is crucial to prevent corrosion or degradation over time.
- Material compatibility with conveyed substances: Ensuring material compatibility between the threads and the fluids or gases being conveyed is essential to prevent chemical reactions, corrosion, or degradation that could lead to leaks or system failures. Selecting the right materials ensures long-term reliability and safety.
- Thread size and pitch compatibility: Matching the thread size and pitch with the connecting components is vital for a secure and leak-free connection. Incompatible sizes or pitches can lead to improper sealing and potential system failures, emphasizing the importance of precise measurements and compatibility checks.
- Level of sealing required for the application: For applications where even minor leaks are unacceptable, tapered threads are typically the best option, offering a robust mechanical seal. If some leakage is tolerable and external sealants are acceptable, straight threads may suffice, providing a balance between sealing and ease of assembly.
Are Threads on Propane Fittings Tapered or Flat
Propane fittings typically utilize tapered threads, specifically NPT (National Pipe Thread) or variations thereof, for creating a leak-free seal. Tapered threads, as the name suggests, narrow in diameter along their length. When screwed together, the tapered threads wedge against each other, creating a tight, mechanical seal. This design is crucial for handling propane, which is a gas under normal atmospheric conditions and requires a robust seal to prevent leaks.
The use of tapered threads is essential for propane fittings due to the nature of the gas. Propane’s ability to permeate through even small gaps necessitates a very tight seal. Tapered threads, when properly tightened, deform slightly, creating an interference fit that effectively blocks gas passage. This mechanical seal, often enhanced with thread sealant, provides the necessary level of leak prevention for propane systems.
While tapered threads are the standard for most propane fittings, it’s important to note that some specialized connections might use flat or parallel threads. However, these flat threads would always require a gasket or o-ring to create a seal, because the flat threads themselves do not create a sealing action. In the vast majority of cases, especially for standard propane connections, you’ll encounter tapered threads.
Why Are Pipe Threads Tapered
Pipe threads are tapered primarily to create a leak-free seal without the need for additional sealing components like gaskets or O-rings. The tapered design allows the threads to wedge tightly against each other as they are tightened, forming a mechanical seal. This is crucial for applications involving fluids or gases under pressure, where any leakage can lead to significant problems.
Here are the key reasons why pipe threads are tapered:
Self-Sealing:
The tapered shape forces the threads to bind together as they are tightened, creating a tight, interference fit. This mechanical seal is often sufficient to prevent leaks, especially when combined with thread sealant.
Increased Joint Strength:
The tapered threads provide a larger contact area between the pipe and fitting, increasing the overall strength of the joint. This is particularly important in high-pressure applications, where the joint must withstand significant force.
Simplified Assembly:
Tapered threads allow for a degree of tolerance in the manufacturing process, making assembly easier. The tapered design helps to align the pipe and fitting, ensuring a proper connection.
Reduced Leakage:
Due to the wedge effect the threads create, it greatly reduces the chance of leaks, which is very important with gasses, and fluids under pressure.
Are NPT Threads Tapered
Yes, NPT (National Pipe Thread) threads are indeed tapered. This tapered design is a fundamental characteristic of the NPT standard, distinguishing it from other thread types like NPS (National Pipe Straight). The taper is standardized at 1/16 inch per inch, meaning the thread diameter decreases by 1/16 inch for every inch of thread length.
The tapered nature of NPT threads is crucial for creating a leak-free seal. When NPT fittings are tightened, the tapered threads wedge against each other, forming a tight, mechanical seal. This seal is often enhanced with thread sealant, which fills any remaining gaps and ensures a reliable connection, especially in applications involving fluids or gases under pressure.
Conclusion
In conclusion, straight and tapered threads serve distinct purposes in fluid transfer systems. Straight threads, designed for mechanical connections, require external sealing methods like O-rings. Tapered threads, conversely, create a mechanical seal through thread compression, ideal for high-pressure applications. Understanding these differences is crucial for selecting the appropriate thread type to ensure leak-free and efficient system operation.
Straight threads, such as those found in NPSM and BSPP fittings, offer ease of assembly but rely on additional sealing components. Tapered threads, exemplified by NPT and BSPT, provide a robust, self-sealing connection, minimizing the need for external sealants in many high-pressure scenarios. Proper thread identification is vital to prevent mismatched connections and potential system failures.
