Understanding the nuances between NPSF and NPSM threads is crucial for anyone working with hydraulic or pneumatic systems. While both are National Pipe Straight threads, their sealing mechanisms and applications differ significantly. This distinction impacts the integrity and performance of fluid transfer systems, making proper identification essential.
This guide will delve into the specific differences between NPSF and NPSM threads, exploring their design, applications, and compatibility. We’ll clarify the sealing methods and provide insights into selecting the correct thread type for your specific needs, ensuring reliable and leak-free connections.

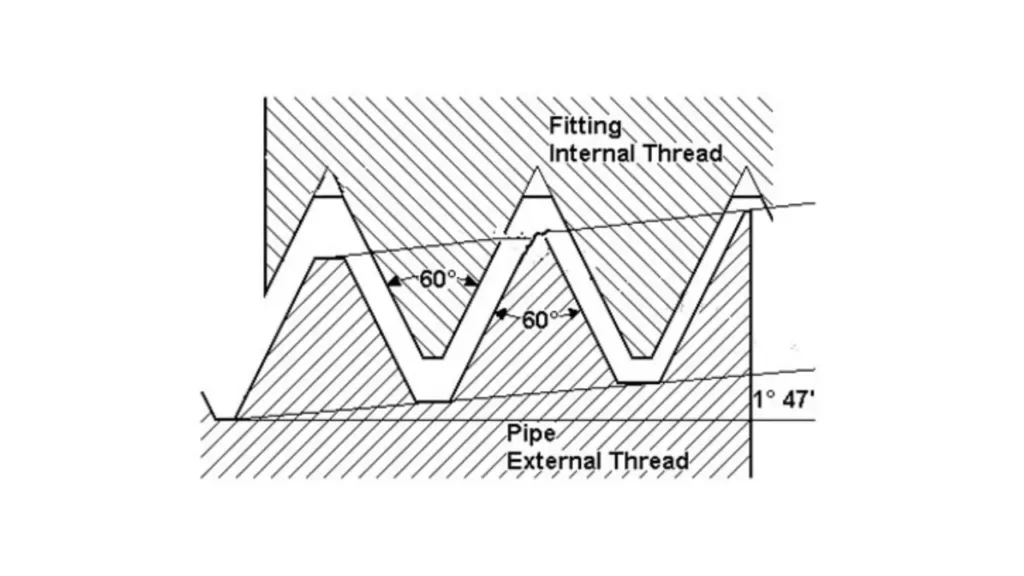

What Is NPSF
NPSF, which stands for National Pipe Straight Fuel, is a U.S. standard thread type primarily used in hydraulic and pneumatic systems. It’s designed as a “dryseal” thread, meaning it’s intended to create a leak-free seal without the need for additional sealants like Teflon tape or pipe dope. This is achieved through the thread’s design, which crushes the threads together during tightening, creating a mechanical seal.
NPSF threads are characterized by their straight, as opposed to tapered, thread form. This straight thread design, combined with its specific pitch and dimensions, allows for a tight, metal-to-metal seal. Due to its dryseal capability, NPSF is particularly favored in high-pressure applications where leaks are unacceptable, such as in fuel and hydraulic systems.

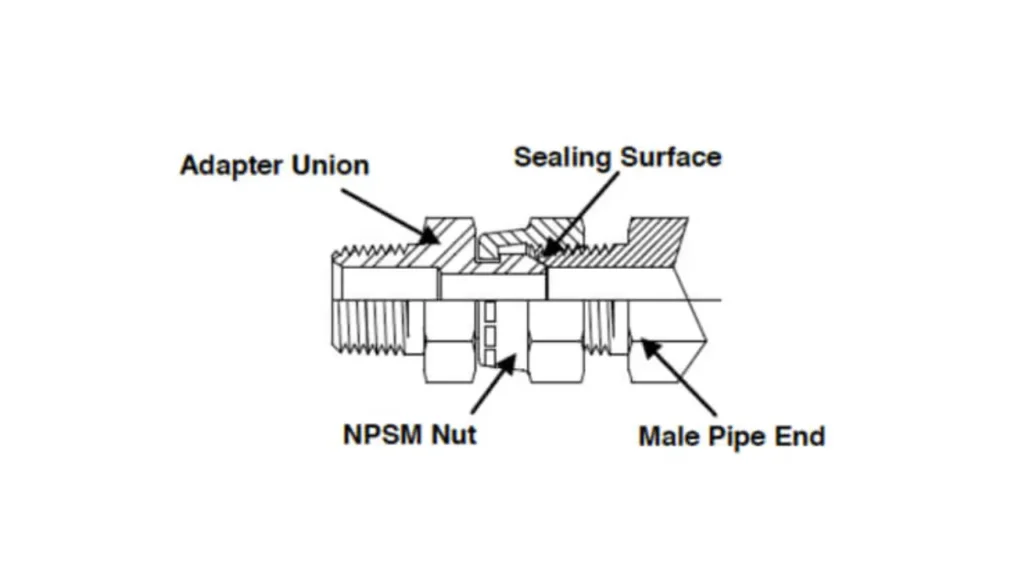

What Is NPSM
NPSM, or National Pipe Straight Mechanical, is another U.S. standard thread type used in fluid power systems. Unlike NPSF, NPSM threads are designed to create a mechanical seal, typically requiring an O-ring or gasket to prevent leaks. This thread type is characterized by its straight threads, similar to NPSF, but it does not rely on thread deformation for sealing.
NPSM threads are commonly used in applications where frequent assembly and disassembly are required, such as in certain hydraulic and pneumatic connections. The mechanical seal provided by an O-ring or gasket allows for easy disconnection and reconnection without damaging the threads or compromising the seal. While effective, NPSM is generally preferred for lower-pressure applications compared to NPSF, due to its reliance on external sealing elements.
NPSF vs NPSM
NPSF and NPSM are both National Pipe Straight thread types used in fluid power systems, but they differ significantly in their sealing mechanisms and applications. Understanding these differences is crucial for selecting the appropriate fittings for your hydraulic or pneumatic systems.
Sealing Mechanism
NPSF threads are designed as “dryseal” threads, meaning they create a leak-free seal without the need for additional sealants. This is achieved through the thread’s design, which crushes the threads together during tightening, creating a metal-to-metal seal. The threads are slightly imperfect, which allows for this crushing and sealing effect. This design is particularly effective in high-pressure applications where leaks are unacceptable.
NPSM threads, on the other hand, are designed to create a mechanical seal, typically requiring an O-ring or gasket to prevent leaks. The threads themselves do not deform to create the seal. Instead, the seal is formed by an external component, such as an O-ring, that is compressed between the fitting and the mating surface. This design allows for easy assembly and disassembly, making it suitable for applications where frequent connections are required.
Application and Pressure Ratings
NPSF threads are commonly used in high-pressure hydraulic and pneumatic systems where a reliable, leak-free seal is essential. Their dryseal design makes them ideal for applications involving fuels, oils, and other fluids under high pressure. These fittings are often found in automotive, industrial, and aerospace applications where system integrity is paramount.
NPSM threads are typically used in lower-pressure applications where frequent assembly and disassembly are required. Their mechanical seal design, relying on O-rings or gaskets, allows for easier connections and disconnections without damaging the threads. These fittings are commonly used in fluid transfer systems, instrumentation, and other applications where a reliable seal is needed but high pressure is not a primary concern.
The differences between NPSF and NPSM fittings.
| Feature | NPSF | NPSM |
| Sealing Mechanism | Dryseal (metal-to-metal) | Mechanical (O-ring or gasket) |
| Thread Design | Slightly imperfect threads that crush together | Straight threads with no deformation for sealing |
| Pressure Rating | High pressure | Lower to medium pressure |
| Application | High-pressure hydraulic and pneumatic systems, fuel systems | Lower-pressure fluid transfer, instrumentation |
| Assembly/Disassembly | Less frequent, more permanent connections | Frequent, easier connections and disconnections |
| Sealant Required | No (dryseal) | Yes (O-ring or gasket) |
How to Choose NPSF and NPSM Fittings
Choosing the right NPSF or NPSM fittings is crucial for ensuring leak-free and reliable connections in your fluid power systems. Proper selection depends on several factors, including the application’s pressure requirements, fluid type, and maintenance needs.
Pressure Requirements
- Determine the maximum operating pressure of your system. NPSF fittings are designed for high-pressure applications, relying on a dryseal mechanism that crushes the threads to create a leak-free seal. If your system operates under high pressure, NPSF fittings are the preferred choice. NPSM fittings, on the other hand, are better suited for lower to medium-pressure applications, as they rely on O-rings or gaskets for sealing. Ensure the fitting’s pressure rating meets or exceeds your system’s requirements to prevent leaks and failures.
Fluid Type and Compatibility
- Consider the type of fluid that will be passing through the fittings. NPSF fittings are commonly used with fuels, oils, and other hydraulic fluids due to their robust sealing capabilities. NPSM fittings can also handle various fluids but require careful selection of O-ring or gasket materials to ensure compatibility. Verify the fitting material and sealing element are compatible with the fluid to prevent corrosion or degradation. Consult fluid compatibility charts or manufacturer specifications to ensure proper selection.
Maintenance and Assembly Needs
- Evaluate the frequency of assembly and disassembly required for your application. NPSM fittings are designed for applications where frequent connections are needed, as their mechanical seal design allows for easy disconnection and reconnection without damaging the threads. If your system requires frequent maintenance or component changes, NPSM fittings offer convenience. NPSF fittings, while providing a superior seal, are less ideal for frequent disassembly due to the thread deformation involved in sealing.
Application Specific Requirements
- Consider the specific requirements of your application. For critical applications where leaks are unacceptable, such as in aerospace or automotive fuel systems, NPSF fittings are essential. In applications where a reliable seal is needed but high pressure is not a primary concern, such as in instrumentation or fluid transfer systems, NPSM fittings may be sufficient. Consider factors like vibration, temperature variations, and environmental conditions to ensure the chosen fittings can withstand the operational demands.
Conclusion
In conclusion, understanding the differences between NPSF and NPSM fittings is essential for ensuring leak-free and reliable hydraulic connections. NPSF’s dryseal design provides a superior seal in high-pressure applications, while NPSM’s mechanical seal is suitable for lower-pressure systems where frequent disassembly is required. Proper selection minimizes leaks and maximizes system efficiency.
The choice between NPSF and NPSM depends on the specific application requirements, including pressure ratings, fluid types, and maintenance needs. Using the correct fitting type prevents costly downtime and ensures system integrity. Proper installation and maintenance further enhance their performance and longevity.
