Removing a broken pipe thread is a common challenge in plumbing and industrial maintenance. A fragment left inside a fitting or pipe can obstruct flow and prevent proper connections, leading to leaks and system inefficiencies. Understanding the right techniques and tools is crucial for safely and effectively extracting these stubborn pieces.
This guide provides a comprehensive overview of methods to remove broken pipe threads, ranging from simple manual techniques to more advanced extraction tools. By following these steps, you can minimize damage to the surrounding components and restore your piping system to optimal functionality.

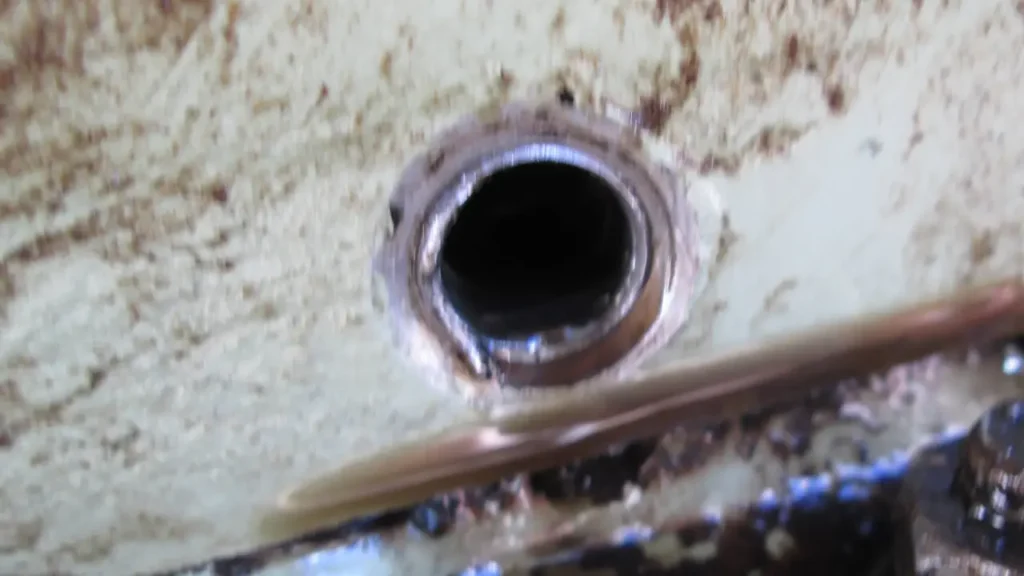

How to Remove a Broken Pipe Thread?
Dealing with a broken pipe thread can be a frustrating but manageable task. Proper removal is crucial to prevent further damage and ensure a clean surface for new connections. This guide provides effective methods for removing broken pipe threads, minimizing the risk of complications.
Step 1: Assess the Situation and Gather Tools
Before attempting removal, thoroughly assess the broken thread’s location, size, and material. This assessment helps determine the best removal method and prevents damage to surrounding components. Gather necessary tools, including an internal pipe wrench, screw extractor set, drill, penetrating oil, and heat gun (if applicable). Ensure you have appropriate safety gear, such as gloves and eye protection.
A thorough assessment is crucial for choosing the right tools, and removal method. Safety precautions prevent injuries.
Step 2: Applying Penetrating Oil and Heat (If Necessary)
If the broken thread is corroded or tightly lodged, apply penetrating oil to the area and allow it to soak for several hours or overnight. For stubborn threads, carefully apply heat using a heat gun to expand the metal, making removal easier. Exercise caution to avoid damaging surrounding components or creating a fire hazard. After applying heat, allow the metal to cool slightly before proceeding.
Penetrating oil, and heat, can loosen stubborn threads. Use caution when applying heat, to prevent damage.
Step 3: Using an Internal Pipe Wrench or Screw Extractor
For threads broken flush with the fitting, an internal pipe wrench or screw extractor set is effective. Insert the appropriate size tool into the broken thread and turn counterclockwise to extract it. Apply steady pressure and avoid excessive force to prevent further breakage. If using a screw extractor, drill a pilot hole into the broken thread first.
Internal pipe wrenches, and screw extractors, are effective for flush breaks. Use steady pressure, and avoid excessive force.
Step 4: Drilling and Extracting (If Necessary)
If other methods fail, carefully drill out the broken thread. Start with a small drill bit and gradually increase the size, being cautious not to damage the fitting’s threads. Once you’ve weakened the broken thread, use a pick or pliers to remove the remaining pieces. Clean the fitting threads thoroughly with a wire brush or thread chaser to remove any debris.
Drilling is a last resort, to be done carefully. Clean the fitting threads, after removal, to ensure a good connection.

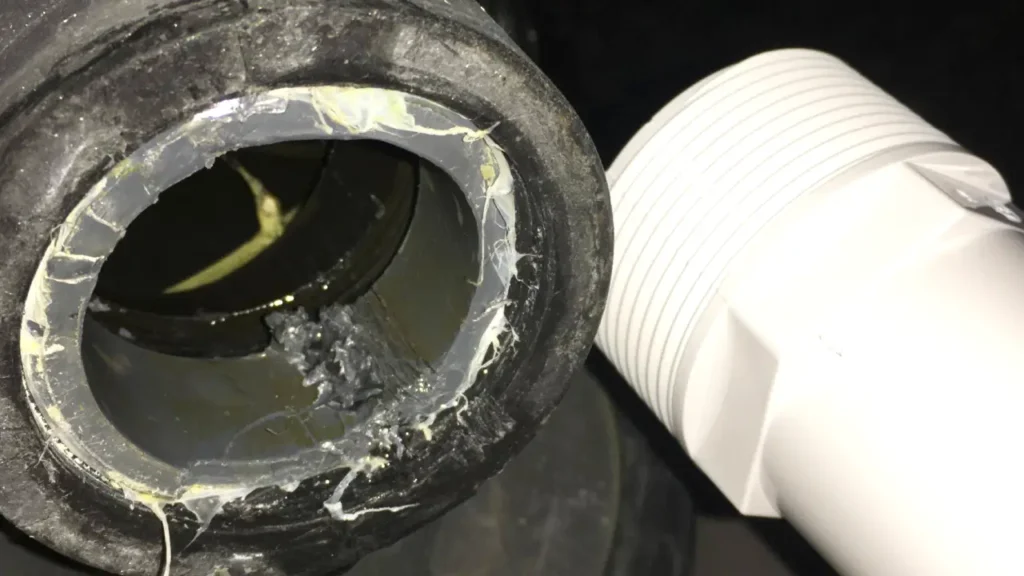

Why Pipe Thread Broken
Pipe threads can break due to a variety of factors, often related to stress, corrosion, or improper installation. Understanding these causes is crucial for preventing future breakages and ensuring the longevity of piping systems. Recognizing the signs of potential failure can save time and money on repairs.
Here are some common reasons why pipe threads break:
Over-tightening:
Excessive force during installation can stress the threads beyond their yield strength, leading to cracks or complete breakage. This is especially true for tapered threads, where over-tightening can cause the threads to bind and fracture.
Corrosion:
Exposure to moisture or corrosive substances can weaken the threads over time. Rust and other forms of corrosion degrade the metal, making it brittle and susceptible to breakage under pressure or stress. This weakening often starts at the thread roots, where stress concentrates.
Physical Damage:
Impacts or mechanical stress from external forces can cause threads to crack or break. This can occur during installation, transportation, or general use, especially in environments where pipes are subject to movement or vibration.
Material Defects:
Manufacturing flaws, such as inclusions or voids in the metal, can weaken the threads. These defects create stress concentration points, making the threads more prone to failure under normal operating conditions.
Thermal Expansion:
Fluctuations in temperature can cause the pipe, and fittings, to expand and contract. This can induce stress on the threads, especially if the materials of the pipe and fitting have different thermal expansion coefficients. This is very common in steam, or hot water systems.
How to Avoid Broken Pipe Thread
Preventing broken pipe threads is essential for maintaining the integrity and longevity of piping systems. Proper installation, maintenance, and material selection play crucial roles in avoiding these issues. Here’s a guide on how to prevent broken pipe threads.
Proper Installation Techniques
Ensure proper alignment of pipes and fittings during installation to prevent cross-threading, which can damage threads. Use thread sealant or Teflon tape to lubricate and seal threads, reducing friction during tightening. Avoid over-tightening; hand-tighten followed by a wrench for a quarter to half turn is usually sufficient. Use appropriate tools, such as pipe wrenches, and apply even pressure to prevent thread damage.
Proper installation prevents cross-threading, and damage. Using thread sealant reduces friction, and over-tightening, which can damage threads.
Material Selection
Choose pipes and fittings made from materials compatible with the application and environment. Corrosion-resistant materials like stainless steel or brass are ideal for damp or corrosive conditions. Ensure the materials can withstand the operating pressure and temperature. Use high-quality fittings and pipes from reputable manufacturers to minimize the risk of material defects that can lead to thread breakage.
Choosing the correct materials, for the application, prevents corrosion, and damage. High quality materials, and manufacturers, will reduce material defects.
Regular Inspection and Maintenance
Conduct regular inspections of piping systems to identify signs of wear, corrosion, or damage. Address any issues promptly to prevent further deterioration. Clean threads and fittings before assembly to remove debris that could cause damage or leaks. Periodically check for loose fittings and tighten them as needed, but avoid over-tightening.
Regular inspections prevent wear, and corrosion. Cleaning threads, and fittings, removes debris. Checking for loose fittings prevents leaks.
Proper Support and Alignment
Ensure proper support for pipes to prevent excessive stress on threads due to sagging or movement. Use hangers, supports, and brackets to maintain alignment and distribute weight evenly. Avoid bending or forcing pipes into place, as this can strain the threads. Ensure proper alignment.
Proper support, and alignment, prevents stress on threads. Using hangers, and brackets, distributes weight. Avoid forcing pipes, into place.
Controlled Operating Conditions
Maintain controlled operating conditions within the piping system, avoiding sudden pressure or temperature fluctuations that can stress threads. Use pressure regulators and temperature controls to minimize these fluctuations. Ensure the system is designed to handle the expected operating conditions, including pressure, temperature, and flow rate.
Controlled operating conditions, like pressure, and temperature, prevent stress. Use regulators, and controls, to minimize fluctuations. Design the system for the expected conditions.
Conclusion
In conclusion, removing a broken pipe thread is a task that demands patience and precision. Employing the appropriate tools and techniques, whether it’s using an internal pipe wrench, a screw extractor, or carefully drilling, minimizes damage to the surrounding pipe or fitting. Diligence in cleaning and inspecting the area post-removal ensures a clean, ready surface for new connections, preventing future leaks and system failures.
Understanding the material of both the broken thread and the fitting is crucial in selecting the right removal method. Applying heat or penetrating oil can significantly aid in loosening stubborn threads, reducing the risk of further breakage. Practicing on scrap pieces can build confidence and refine your technique, making the process smoother when dealing with critical piping systems.
