How to Determine Pipe Thread Size?

Accurately determining pipe thread size is crucial for ensuring leak-free connections in fluid and gas transfer systems. Incorrect sizing can lead to costly leaks and system failures. This guide provides a comprehensive approach to measuring and identifying pipe thread sizes, empowering you to select the right fittings and components for your applications.

Understanding the nuances of pipe thread measurements, including nominal pipe size (NPS) and threads per inch (TPI), is essential for both DIY enthusiasts and professionals. Proper measurement techniques, and the use of relevant tools, ensure compatibility and prevent potential hazards. This knowledge is vital for maintaining system integrity and efficiency.

What Are Pipe Threads

Pipe threads are standardized screw threads used to join pipes and fittings for fluid or gas transport. They are designed to create a pressure-tight seal, preventing leaks in piping systems. Unlike standard machine threads, pipe threads are typically tapered, allowing them to wedge tightly together as they are tightened. This tapered design creates a mechanical seal, often enhanced with thread sealant, that can withstand high pressures and temperatures.

These threads are crucial in various industries, including plumbing, oil and gas, and manufacturing, where reliable connections are essential. Different standards, such as NPT (National Pipe Thread), BSPT (British Standard Pipe Taper), and metric threads, exist to accommodate diverse applications and regional requirements. Understanding pipe thread types and sizes is vital for ensuring compatibility and preventing system failures.

Types of Pipe Threads

Understanding the various types of pipe threads is essential for ensuring proper connections and preventing leaks in fluid and gas transfer systems. Each thread type has unique characteristics and applications, making it crucial to select the correct one for your specific needs. Here’s a breakdown of common pipe thread types.

National Pipe Thread (NPT)

NPT is a U.S. standard for tapered threads used on threaded pipes and fittings. Its tapered design, narrowing in diameter along its length, creates a mechanical seal when tightened. This design eliminates the need for additional sealing components like gaskets or O-rings in many applications. NPT threads are widely used in plumbing, oil and gas, and manufacturing.

National Pipe Thread Fuel (NPTF)

NPTF threads, also known as Dryseal threads, are designed to create a leak-free seal without the use of sealant. This is achieved through tighter control of the thread truncation, resulting in an interference fit. NPTF threads are commonly used in high-pressure applications, such as fuel and hydraulic systems, where leaks are unacceptable. While NPT and NPTF share the same basic dimensions and taper, their sealing mechanisms differ.

National Pipe Straight (NPS)

NPS threads are straight threads, meaning they do not taper. Unlike NPT and NPTF, NPS threads require a gasket or O-ring to create a seal. They are commonly used for mechanical connections or low-pressure applications where a tight seal is not critical. NPS threads are often found in applications where easy assembly and disassembly are required.

British Standard Pipe Taper (BSPT)

BSPT is a British standard for tapered threads, similar to NPT. However, BSPT threads have different dimensions and thread angles, making them incompatible with NPT threads. BSPT threads are commonly used in Europe and other parts of the world. They rely on the tapered design to create a mechanical seal, often enhanced with thread sealant.

British Standard Pipe Parallel (BSPP)

BSPP threads are parallel threads, similar to NPS. They require a gasket or O-ring to create a seal. BSPP threads are commonly used in Europe and other parts of the world. They are often found in low-pressure applications or where easy assembly and disassembly are required.

Metric Threads (ISO 7/1)

Metric threads, standardized by ISO 7/1, are used in many parts of the world, particularly in Europe and Asia. They can be either tapered or parallel. Tapered metric threads, like those in ISO 7/1, create a seal through the tapered design, while parallel metric threads require a gasket or O-ring. These threads are common in hydraulic and pneumatic systems, as well as general piping applications.

Pipe Thread Size Chart

A pipe thread size chart is an essential tool for anyone working with pipes and fittings, providing standardized dimensions for various thread types. It helps users accurately identify thread sizes, ensuring compatibility and preventing leaks in fluid and gas transfer systems. These charts typically include information on nominal pipe size (NPS), outer diameter (OD), threads per inch (TPI), and pitch, depending on the thread standard. Accurate identification is paramount for reliable connections.

Using a pipe thread size chart simplifies the selection of appropriate fittings and reduces the risk of costly mistakes. By referencing the chart, users can quickly determine the correct thread size for their specific application, ensuring a secure and leak-free connection. This is particularly important in industries where precision and reliability are critical, such as plumbing, oil and gas, and manufacturing.

Nominal Pipe Size (NPS):

• This is a designation that approximates the pipe’s bore size, not its actual dimensions. It’s a crucial reference for matching fittings.

Outer Diameter (OD):

• The OD is the measurement of the pipe’s outside diameter, essential for ensuring proper fit with fittings and other components.

Threads Per Inch (TPI):

• TPI indicates the number of threads within one inch of thread length, vital for identifying thread compatibility.

Pitch:

• Pitch is the distance between thread peaks, primarily used in metric thread measurements.

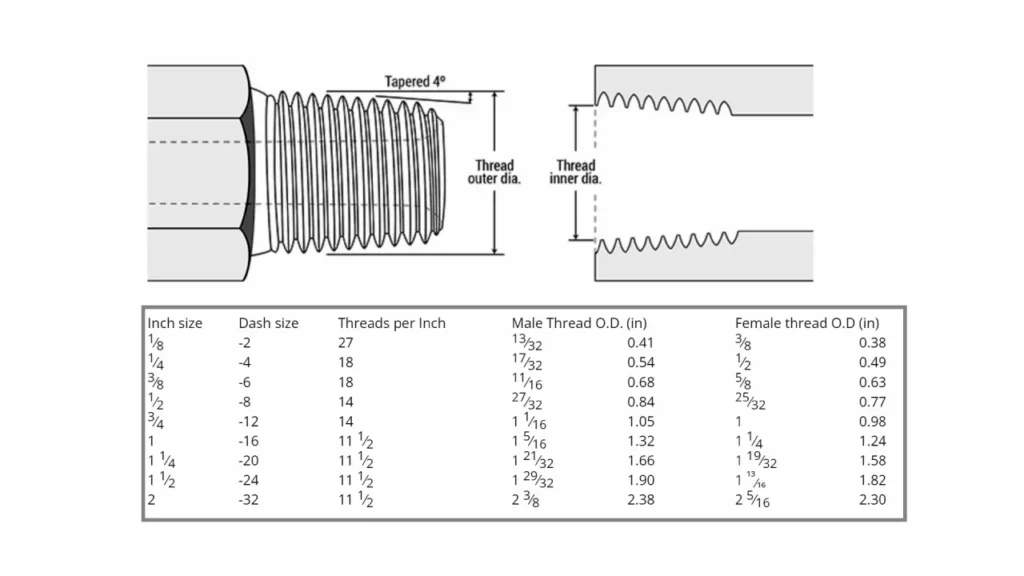

Here is the chart to show pipe thread sizes and dimensions in the following:

How to Determine Pipe Thread Size

Determining the correct pipe thread size is crucial for ensuring leak-free and secure connections in your piping systems. If you’re unsure about the size, don’t worry—we’ve got you covered. This guide will walk you through the steps to accurately measure and identify pipe thread sizes.

Step 1: Identifying the Thread Type

Before we dive into measurements, it’s essential to identify the thread type. You’ll commonly encounter NPT (National Pipe Thread), NPTF (National Pipe Thread Fuel), BSPT (British Standard Pipe Taper), and BSPP (British Standard Pipe Parallel). Visual inspection can help: tapered threads indicate NPT or BSPT, while straight threads suggest NPS or BSPP. Knowing the thread type guides you to the correct tools and measurement methods.

Understanding the thread type is your first step. We need to know if it is tapered, or straight. This will help us use the correct measurement methods and tools. We want to ensure that you get the correct measurements.

Step 2: Measuring the Diameter

Now, let’s measure the pipe thread diameter. For male threads, use a caliper to measure the outside diameter (OD) at the first full thread from the end. For female threads, measure the inside diameter (ID) at the opening. If you’re dealing with tapered threads, ensure you measure at the first full thread to get an accurate reading. For straight threads, any point along the thread length will do. Record your measurement in inches or millimeters, depending on the thread standard.

Measuring the diameter is key to identifying the nominal pipe size. We want you to measure accurately to prevent leaks. The caliper should be perpendicular to the thread axis. Take your measurements in inches or millimeters, depending on the thread type.

Step 3: Measuring Threads Per Inch (TPI) or Pitch

Next, we’ll determine the threads per inch (TPI) or pitch. For inch-based threads, use a thread pitch gauge. Match the blades to the threads until one fits snugly. For metric threads, measure the distance between two adjacent threads, known as the pitch. A thread counter can also be helpful. Record your TPI or pitch measurement.

Measuring TPI or pitch helps us identify the thread size. We want you to use a thread pitch gauge, or thread counter, for accuracy. Record the measurement.

Step 4: Determining Thread Taper (for Tapered Threads)

If you’re working with tapered threads like NPT or BSPT, we need to determine the taper. The standard taper for NPT is 1/16 inch per inch. You can use a taper gauge or measure the diameter at two points along the thread and calculate the difference. This step is less common but crucial for ensuring compatibility with tapered fittings.

Measuring the thread taper is crucial for tapered threads. We want you to use a taper gauge, or calculate, the difference. This ensures compatibility with tapered fittings.

How Do You Measure Pipe Thread Size

Accurately measuring pipe thread size is essential for ensuring proper connections and preventing leaks in your piping systems. If you’re unsure about the size, don’t worry—we’ve got you covered. This guide will walk you through the steps to accurately measure and identify pipe thread sizes.

Step 1: Identifying the Thread Type

Before we grab any tools, let’s first identify the thread type. Common types you’ll encounter include NPT (National Pipe Thread), NPTF (National Pipe Thread Fuel), BSPT (British Standard Pipe Taper), and BSPP (British Standard Pipe Parallel). We can often tell the difference by visual inspection; tapered threads indicate NPT or BSPT, while straight threads suggest NPS or BSPP. Knowing the thread type is the first step, as it dictates the tools and methods we’ll use for accurate measurements.

Identifying the thread type is the first step. We need to know if it is tapered, or straight. This will help us use the correct measurement methods and tools. We want to ensure that you get the correct measurements.

Step 2: Measuring the Diameter

Next, we’ll measure the diameter of the thread. For male threads, use a caliper to measure the outside diameter (OD) at the first full thread from the end. For female threads, measure the inside diameter (ID) at the opening. If you’re measuring tapered threads, ensure you take the measurement at the first full thread to capture the true diameter. For straight threads, you can measure at any point along the thread length. Record your measurement in inches or millimeters, depending on the thread standard you’re working with.

Measuring the diameter is key to identifying the nominal pipe size. We want you to measure accurately to prevent leaks. The caliper should be perpendicular to the thread axis. Take your measurements in inches or millimeters, depending on the thread type.

Step 3: Measuring Threads Per Inch (TPI) or Pitch

Now, we’ll determine the threads per inch (TPI) or pitch. For inch-based threads, use a thread pitch gauge. Match the blades of the gauge to the threads until one fits snugly. For metric threads, you’ll measure the distance between two adjacent threads, known as the pitch. A thread counter can also be helpful for this step. Be sure to accurately record your TPI or pitch measurement.

Measuring TPI or pitch helps us identify the thread size. We want you to use a thread pitch gauge, or thread counter, for accuracy. Record the measurement.

Step 4: Determining Thread Taper (for Tapered Threads)

If you’re working with tapered threads like NPT or BSPT, we need to determine the thread taper. The standard taper for NPT is 1/16 inch per inch. You can use a taper gauge or measure the diameter at two points along the thread and calculate the difference. While less common, this step is crucial for ensuring compatibility with tapered fittings, and preventing leaks.

Measuring the thread taper is crucial for tapered threads. We want you to use a taper gauge, or calculate, the difference. This ensures compatibility with tapered fittings.

Conclusion

In conclusion, accurately determining pipe thread size is crucial for ensuring leak-free and efficient connections in various piping systems. Understanding the differences between thread types, such as NPT, BSPT, and metric threads, and employing the correct measurement tools are essential for obtaining precise dimensions. This knowledge prevents costly errors and system failures, saving time and resources.

Following the outlined steps for measuring thread diameter, threads per inch or pitch, and thread taper ensures accurate results. Regular practice and attention to detail minimize errors, leading to reliable and leak-free connections. Proper measurement techniques save time and resources by preventing mismatched fittings and system failures, and ensures the system operates safely.
