Push Lock Fittings

We offer a diverse range of high-quality push lock fittings, designed for quick and reliable connections in various applications. Our fittings provide secure, leak-free performance, simplifying installation and reducing downtime. Available in multiple sizes, materials, and configurations, our push lock fittings meet stringent industry standards, ensuring durability and efficiency for your projects.

Push Lock Fittings Wholesale

We provide a comprehensive selection of push lock fittings wholesale, catering to diverse industrial and commercial needs. Our inventory features various sizes, materials, and configurations, ensuring you find the perfect fit for your applications. Benefit from competitive pricing and reliable quality, streamlining your supply chain with our efficient wholesale solutions.

push lock fittings

push lock fitting functions

Quick Connection and Disconnection: Their primary function is to enable rapid, tool-free connections and disconnections of tubing or hoses. This significantly reduces installation and maintenance time, especially in applications requiring frequent changes or adjustments.

Leak-Proof Sealing: The internal locking mechanism and sealing elements within push lock fittings create a reliable, leak-proof seal. This ensures fluid or air integrity, preventing losses and maintaining system efficiency, even under pressure.

Simplified System Design: Push lock fittings facilitate simplified system design by eliminating the need for complex threading or clamping. Their compact design and various configurations allow for flexible routing and connection options, optimizing space utilization.

Versatile Application Adaptability: These fittings are designed to function across a wide range of applications, from pneumatic and hydraulic systems to fluid transfer and automotive uses. Their adaptability to different materials, pressures, and temperatures makes them a broadly applicable solution.

Why Choose Our Push Lock Fittings

Material Selection

We can provide fittings made from specialized materials beyond standard options, enhancing chemical resistance, temperature tolerance, or pressure ratings. This allows us to tailor the fitting to your specific operational environment.

Size and Configuration Modifications

We can modify fitting dimensions and configurations to match your system’s exact requirements. This includes adjustments to diameter, length, thread sizes, and custom configurations like non-standard angles.

Sealing Element Customization

We offer the ability to customize sealing elements to ensure optimal fluid compatibility and temperature resistance. This ensures a reliable, leak-free seal under diverse operating conditions.

Custom Plating and Coatings

We provide custom plating and coating options to enhance corrosion resistance, improve aesthetics, or provide specific surface properties. This includes options for various plating types and specialized coatings.

DF Hydraulics: Your Leading Push Lock Fittings Manufacturer

DF Hydraulics is a leading push lock fittings manufacturer, specializing in high-quality, reliable solutions for diverse applications. As a premier hydraulic fitting manufacturer, we combine precision engineering with durable materials to deliver exceptional performance. Our comprehensive range of push lock fittings ensures quick, leak-free connections, simplifying installation and reducing downtime. Trust DF Hydraulics for innovative solutions tailored to your specific needs, backed by our commitment to quality and customer satisfaction.

push lock air fittings

push lock air fittings

We offer push lock air line fittings, designed for efficient and reliable pneumatic connections. Our fittings provide secure, leak-free performance, simplifying installation and maintenance. Available in various sizes and configurations, our push lock air line fittings are built to withstand demanding industrial environments, ensuring consistent and dependable airflow.

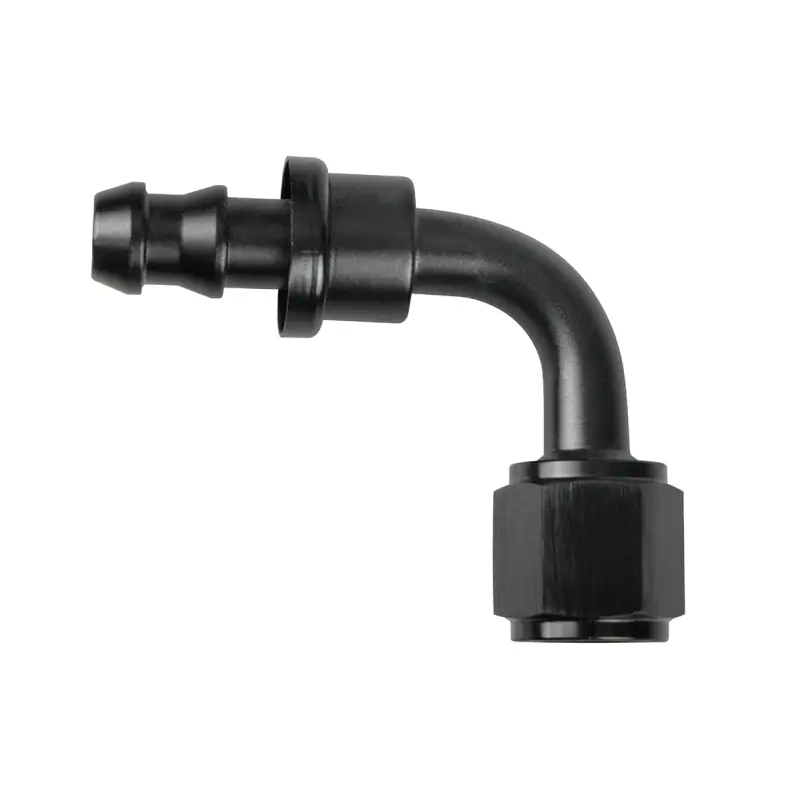

push lock fuel line fittings

push lock fuel line fittings

We offer a robust selection of push lock fuel line fittings, engineered for secure and efficient fuel system connections. Our fittings are designed to withstand the rigors of fuel applications, providing reliable, leak-free performance. Available in various sizes and materials, our push lock fuel line fittings ensure quick and easy installation, enhancing the efficiency and safety of your fuel systems.

push lock an fittings

push lock AN fittings

We provide push lock AN fittings, engineered for high-performance fluid transfer applications. Our fittings combine the convenience of push-to-connect technology with the reliability of AN standards. Available in various sizes and materials, our push lock AN fittings ensure secure, leak-free connections, simplifying installation and maintenance in demanding environments. Trust in our quality for optimal performance.

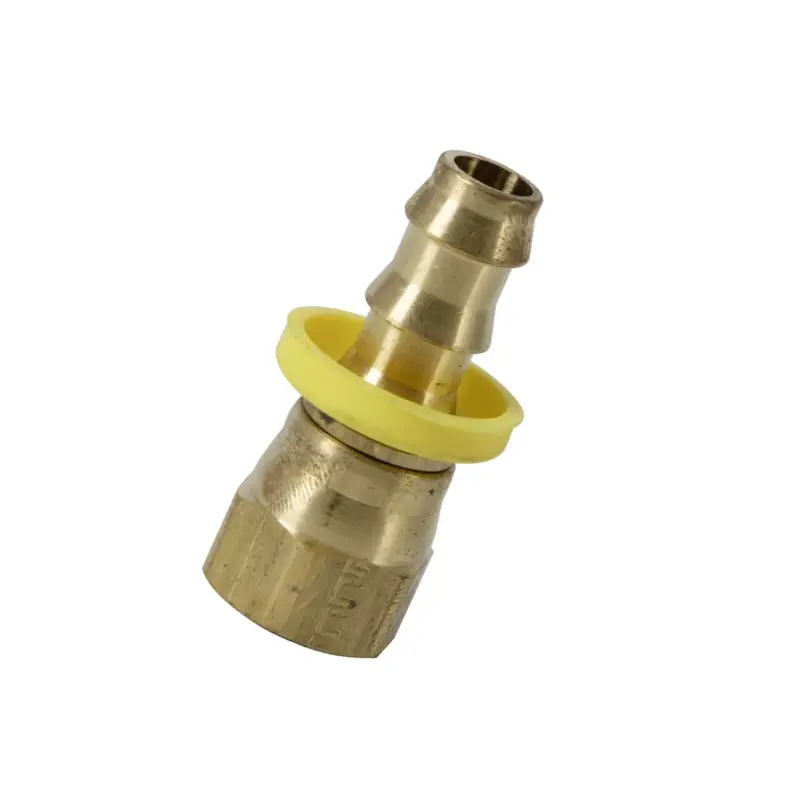

jic push lock fittings

JIC push lock fittings

We offer a selection of JIC push lock fittings, designed for efficient and secure connections in hydraulic systems. These fittings combine the convenience of push-to-connect technology with the reliable sealing of JIC connections. Our range provides durable, leak-free performance, simplifying installation and maintenance. Available in various sizes and configurations, they meet stringent industry standards.

metric push lock fittings

metric push lock fittings

We offer metric push lock fittings, designed for precise and reliable connections in metric-sized tubing systems. Our fittings ensure secure, leak-free performance, simplifying installation and maintenance. Available in various metric sizes and configurations, our push lock fittings meet stringent industry standards, providing durable and efficient solutions for your metric applications.

push lock air brake fittings

push lock air brake fittings

We offer a comprehensive selection of push lock air brake fittings, designed for reliable and secure connections in air brake systems. Our fittings ensure leak-free performance and quick installation, meeting stringent industry standards. Available in various sizes and configurations, our air brake fittings are crafted from durable materials, providing long-lasting dependability for your critical applications.

push lock banjo fittings

push lock banjo fittings

We offer push lock banjo fittings, designed for efficient and secure connections in fluid and air systems. These fittings combine the convenience of push-to-connect technology with the versatile angle of banjo connections. Ideal for tight spaces and complex routing, our banjo fittings ensure reliable, leak-free performance. Available in various sizes and materials, we provide solutions for your diverse application needs.

push lock barb fittings

push lock barb fittings

We offer push lock barb fittings, designed for secure and efficient hose connections. Our fittings combine the ease of push-to-connect technology with the reliable grip of barbed ends, ensuring leak-free performance. Available in various sizes and materials, our push lock barb fittings cater to diverse applications, providing quick and dependable solutions for your fluid and air transfer needs.

push lock bulkhead fitting

push lock bulkhead fitting

We offer a range of push lock bulkhead fittings, designed for secure and efficient connections through panels or bulkheads. These fittings provide a reliable, leak-free seal, simplifying installation and maintenance. Available in various sizes and materials, our bulkhead fittings ensure robust performance in diverse applications, offering a convenient solution for your connection needs.

push lock pneumatic fittings

push lock pneumatic fittings

We offer a wide selection of push lock pneumatic fittings, designed for efficient and reliable air connections. Our fittings provide quick, tool-free installation, minimizing downtime and ensuring secure, leak-free performance. Available in various sizes and configurations, our pneumatic fittings are crafted from durable materials to withstand demanding industrial environments. Trust our quality for your pneumatic system needs.

stainless steel push lock fittings

stainless steel push lock fittings

We offer a robust selection of stainless steel push lock fittings, designed for high-performance and demanding environments. These fittings provide exceptional corrosion resistance, durability, and reliable leak-free connections. Ideal for applications involving harsh chemicals, high pressures, or extreme temperatures, our stainless steel push lock fittings ensure long-lasting performance and peace of mind.

1:8 npt push lock fitting

1 8 NPT push lock fittings

We offer a wide selection of 1/8 NPT push lock fittings, designed for fast and secure connections. These fittings ensure leak-free performance and simplify installation, reducing downtime. Available in various materials and configurations, our 1/8 NPT push lock fittings meet industry standards, providing reliable solutions for your pneumatic and fluid systems.

3 8 push lock fittings

3 8 push lock fittings

We offer a wide selection of 3/8″ push lock fittings, designed for reliable and efficient fluid or air connections. Our fittings are crafted from high-quality materials, ensuring durability and leak-free performance. Available in various configurations, including straight, elbow, and tee, our 3/8″ push lock fittings cater to diverse application needs. Trust our precision-engineered solutions for your connection requirements.

1:2 push lock fittings

1 2 push lock fittings

We offer a robust selection of 1/2-inch push lock fittings, designed for secure and efficient fluid or air connections. Our fittings are crafted from high-quality materials, ensuring durability and leak-free performance. Available in various configurations, including straight, elbow, and tee, our 1/2-inch push lock fittings simplify installation and provide reliable connections for your projects.

6 an push lock fittings

6 AN push lock fittings

We  offer AN push lock fittings, including: straight, elbow, tee, reducer, bulkhead, and swivel types. Each is engineered for reliable, leak-free connections across various applications. Our fittings are available in multiple materials and sizes, ensuring compatibility with your specific needs. Trust our quality push lock fittings for efficient and secure fluid or air transfer.

What Are push lock Fittings?

Push lock fittings, also known as push-to-connect fittings, are designed to create quick and secure connections between tubing or hoses without the need for tools. Their internal mechanism features a gripping component that locks onto the tubing when it’s inserted, forming a reliable, leak-proof seal. This design dramatically simplifies installation and maintenance, offering significant time and labor savings compared to traditional threaded or compression fittings.

These fittings are widely used across various industries due to their ease of use and versatility. They’re found in pneumatic systems, fluid handling, automotive applications, and more. The availability of different materials, sizes, and configurations allows push lock fittings to accommodate a broad range of operating conditions and fluid types. Their ability to create a secure connection with a simple push makes them a popular choice for both professionals and DIY enthusiasts.

What Are push lock Fittings made of?

Push lock fittings are manufactured from a variety of materials, each selected for its specific properties to suit different applications and operating conditions.

The choice of material significantly impacts the fitting’s durability, chemical resistance, and pressure handling capabilities.

  • Brass:
    • Brass fittings are known for their strength and corrosion resistance, making them suitable for pneumatic and low-pressure hydraulic applications.
    • They offer excellent durability and can withstand moderate temperatures, providing a reliable connection in various environments.
  • Plastic:
    • Plastic fittings, often made from nylon, polypropylene, or other polymers, are lightweight and cost-effective.
    • They are ideal for low-pressure applications and offer good chemical resistance, making them suitable for water, air, and some chemical transfer systems.
  • Stainless Steel:
    • Stainless steel fittings provide superior corrosion resistance and are ideal for harsh environments and high-pressure applications.
    • They can withstand extreme temperatures and are commonly used in food processing, chemical, and pharmaceutical industries, where hygiene and durability are crucial.

what are push lock fittings used for?

Push lock fittings are widely used across various industries due to their efficiency and ease of installation.

Their ability to create quick and secure connections without the need for tools makes them invaluable in numerous applications.

  • Pneumatic Systems:
    • They are essential for connecting air lines in automated machinery and robotics, facilitating rapid assembly and maintenance.
    • Used in air tools and compressors, they allow for quick changes and adjustments, improving operational efficiency.
    • They play a crucial role in creating efficient air distribution networks in manufacturing and industrial settings.
  • Fluid Handling:
    • Push lock fittings are used to connect fluid lines in industrial processing and chemical transfer, ensuring leak-free connections.
    • They are vital in beverage dispensing and water filtration systems, providing reliable and hygienic connections.
    • They are suitable for low-pressure hydraulic applications and fluid sampling, offering convenience and reliability.

Beyond these core applications, push lock fittings are also commonly found in automotive systems, recreational vehicles, and marine applications. Their adaptability to various materials and sizes ensures they can meet the diverse needs of different industries. The ability to create a secure connection with a simple push makes them a popular choice for both professionals and DIY enthusiasts.

how to install push lock fittings?

Installing push lock fittings is a straightforward process, but proper technique is essential to ensure a secure and leak-free connection. Here’s a step-by-step guide:

1. Preparation and Tubing Preparation

Before you begin, ensure the system is depressurized and the fluid or air supply is shut off. Clean the tubing or hose to remove any debris or contaminants that could interfere with the seal. Inspect the tubing for any damage, such as cuts or abrasions, which could compromise the connection.

Use a sharp tubing cutter to make a clean, square cut on the tubing. Avoid using tools that crush or deform the tubing, as this will prevent a proper seal. Deburr the inside and outside edges of the cut tubing to remove any sharp edges or burrs that could damage the fitting’s internal seals.

2. Inserting the Tubing

Firmly push the tubing into the push lock fitting until you feel a distinct click or resistance. This indicates the internal locking mechanism has engaged. Ensure the tubing is fully inserted until it bottoms out within the fitting. Partial insertion can lead to leaks or disconnections under pressure.

Gently pull on the tubing to verify that it is securely locked in place. If the tubing pulls out, it indicates that it was not fully inserted or that the fitting is damaged. Re-inspect the tubing and fitting, and repeat the insertion process, applying more force if necessary. For larger or higher-pressure applications, slightly rotate the tubing while pushing it into the fitting to ensure proper engagement.

3. Testing and Verification

After inserting the tubing, perform a leak test to ensure a secure connection. Apply a soapy water solution to the connection point and check for bubbles, which indicate a leak. If a leak is detected, re-seat the tubing or replace the fitting.

For pneumatic or fluid systems, pressurize the system to its operating pressure and monitor the connection for any signs of leaks or disconnections. This test ensures the fitting can withstand the intended operating conditions and that the system is functioning correctly. Visually inspect the connection to ensure the tubing is properly aligned and there are no signs of stress or damage.
