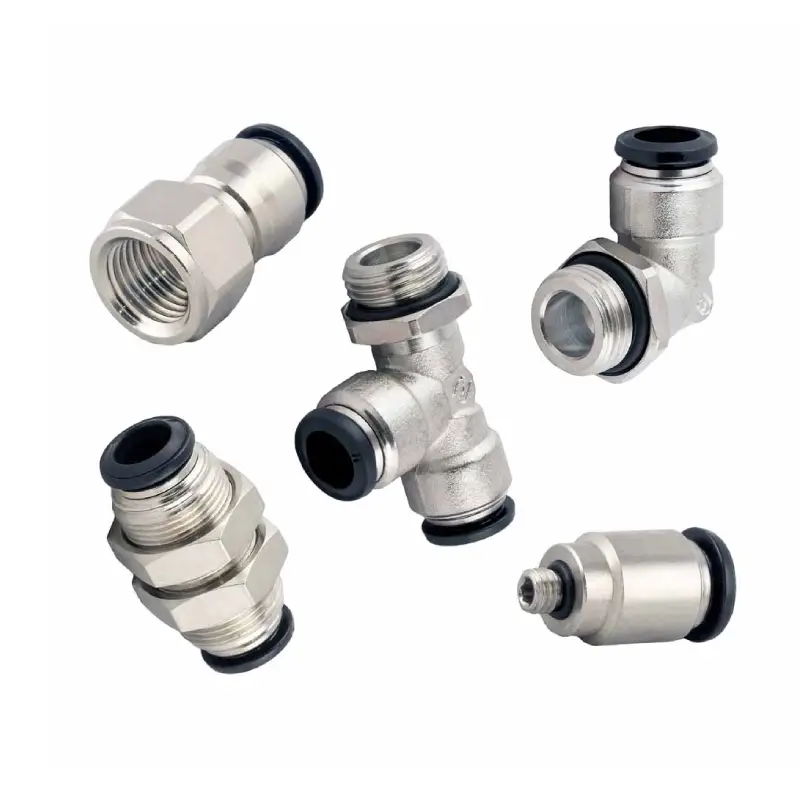

Pneumatic Push in Fittings

Pneumatic push-in fittings provide quick, tool-free connections for air lines. They feature an internal collet that grips tubing when inserted, creating a secure seal. We offer a wide range of sizes and configurations, ensuring reliable performance in various pneumatic systems.

Pneumatic Push in Fittings Wholesale

We offer a comprehensive wholesale selection of pneumatic push-in fittings, designed for reliable and efficient air line connections. Our inventory includes various sizes, materials (brass, stainless steel, and plastics), and configurations (straight, elbow, tee). We cater to bulk orders, providing competitive pricing and consistent quality. Our fittings are engineered for quick installation and secure sealing, minimizing downtime and optimizing pneumatic system performance. Contact us for customized solutions and volume discounts.

ORB Hydraulic Fitting Sizes

Rapid, Tool-Free Installation: Push-in fittings simplify assembly, significantly reducing installation time and labor costs. Their design eliminates the need for wrenches or specialized tools, enabling quick connections and disconnections.
Reliable, Leak-Free Seals: The internal collet mechanism provides a secure and consistent grip on tubing, ensuring a tight, leak-free seal. This reduces air loss, improves system efficiency, and minimizes downtime.
Versatile and Adaptable: Available in a wide variety of sizes, configurations, and materials, push-in fittings can accommodate diverse pneumatic system requirements. They handle various tubing types and pressures, making them suitable for numerous applications.
Compact and Space-Saving: Their streamlined design allows for installation in tight spaces, optimizing system layout and reducing overall footprint. This is particularly beneficial in applications with limited space.

Why Choose Our Pneumatic Push in Fittings

Material Selection:

We offer a wide range of materials, including brass, stainless steel, and various engineered plastics. We work with you to choose the ideal material based on your specific application’s requirements, such as corrosion resistance, temperature tolerances, and media compatibility. Our goal is to ensure long-lasting, reliable performance in any environment.

Size and Configuration:

We understand the importance of precise fit. We customize the fitting’s dimensions, including tube outer diameter and thread size, to seamlessly integrate with your existing system. We also provide various configurations like elbows, tees, and straight connectors, tailored to your specific layout needs, ensuring optimal airflow and system efficiency.

Seal and Thread Types:

We provide a selection of seal materials, such as NBR and FKM, to match your fluid and temperature requirements. We also offer customization of thread types, including NPT, BSPT, and metric, to ensure a secure, leak-free connection. We prioritize compatibility and reliability, preventing costly downtime and system failures.

Release Mechanism and Color Coding:

We customize release sleeve designs for ease of use and specific application needs. We also offer color coding options for quick identification of different lines within complex systems. Our focus is on enhancing safety and efficiency, allowing for easier maintenance and troubleshooting. We strive to provide solutions that simplify your pneumatic operations.

DF Hydraulics: Your Leading Pneumatic Push in Fittings Manufacturer

DF Hydraulics stands as a premier hydraulic fitting manufacturer, specializing in high-quality pneumatic push-in fittings. We deliver precision-engineered solutions, catering to diverse industrial needs. Our extensive range ensures reliable, leak-free connections, optimizing pneumatic system performance. With a focus on durability and innovation, we provide customizable fittings, guaranteeing seamless integration and efficient operation. Trust DF Hydraulics for dependable pneumatic solutions.

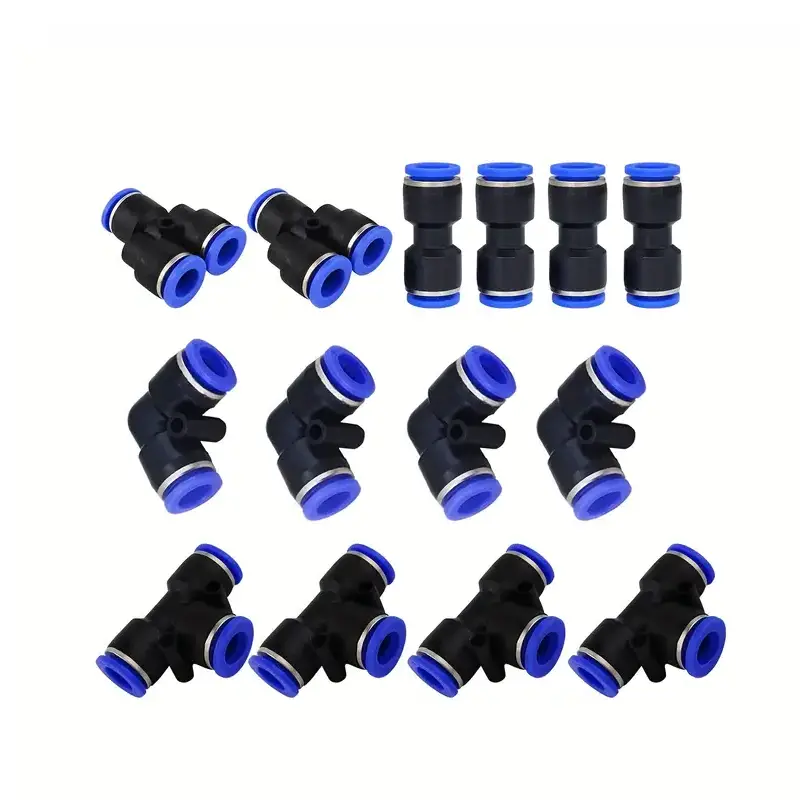

pneumatic push to connect fittings

We offer a wide range of pneumatic fittings push to connect, designed for rapid and reliable air line connections. Our fittings feature a simple push-in design, eliminating the need for tools and ensuring leak-free performance. Available in various sizes and configurations, we cater to diverse pneumatic applications, providing efficiency and convenience.

Straight Push Fit Connector Pneumatic Fittings

We offer a wide selection of straight push fit pneumatic connectors, designed for quick and reliable connections. These fittings provide a secure, leak-free seal for various tubing types. Our range includes diverse sizes and materials, catering to various pressure and temperature requirements. Ideal for simplifying pneumatic system assembly and maintenance.

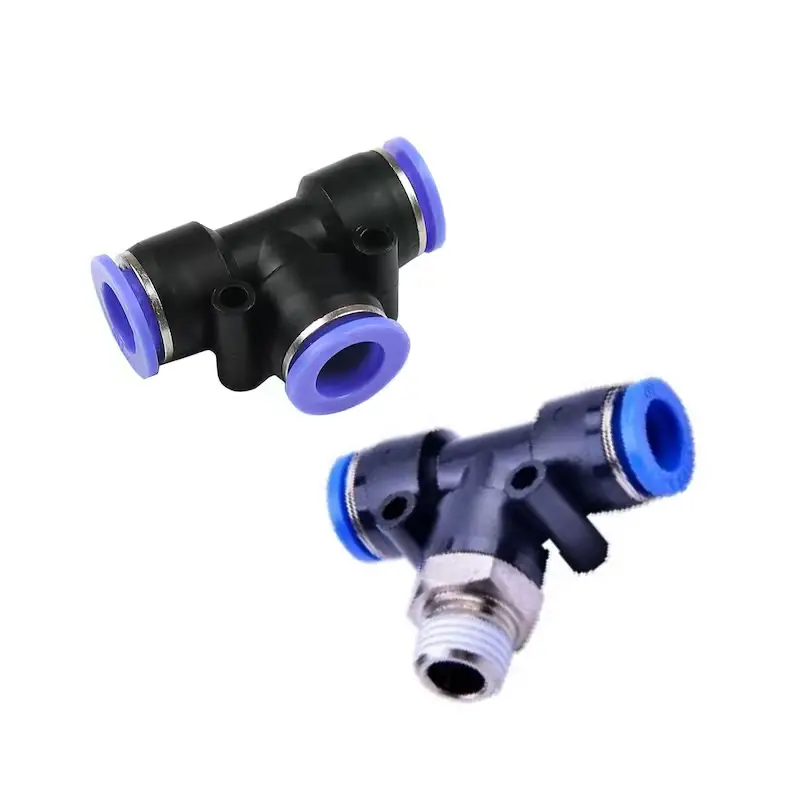

push lock pneumatic fittings

We offer a full range of push lock pneumatic fittings, designed for swift and secure air line connections. Our fittings feature a robust locking mechanism, ensuring reliable, leak-free performance. Available in various sizes and configurations, they simplify installation and maintenance in diverse pneumatic applications. We prioritize quality and durability.

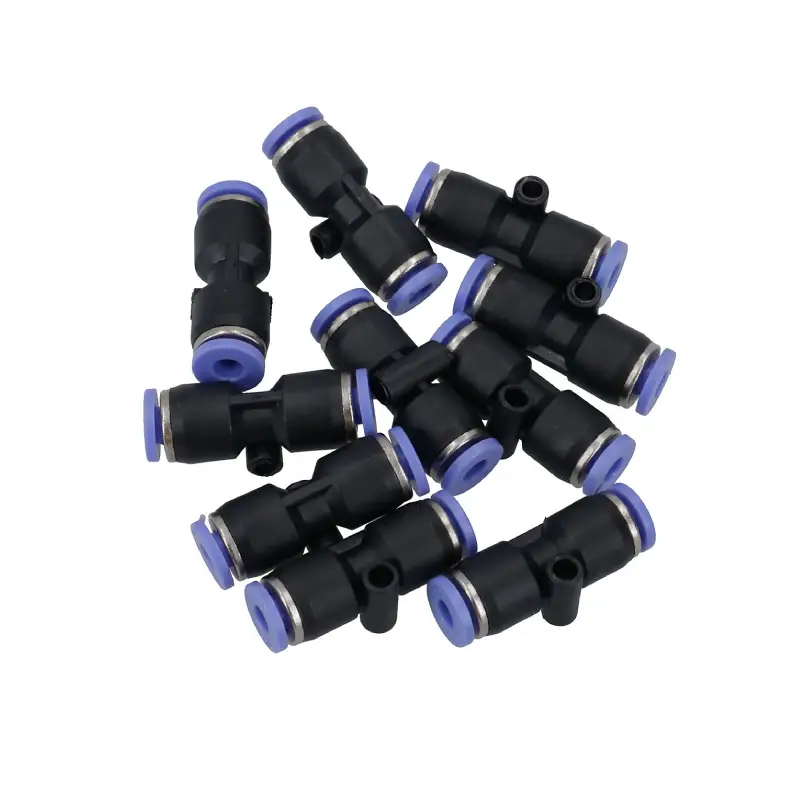

4mm push in pneumatic fitting

We offer a wide selection of 4mm push-in pneumatic fittings, designed for precision and reliability. These fittings provide quick, tool-free connections, ensuring leak-free performance in compact pneumatic systems. Available in various configurations and materials, our 4mm fittings are ideal for applications requiring small-diameter tubing.

push to connect pneumatic airline fittings

We offer wide range of push-to-connect pneumatic airline fittings designed for rapid and reliable connections. Our selection includes various sizes, materials, and configurations, ensuring compatibility with diverse pneumatic systems. These fittings provide secure, leak-free seals, simplifying installation and maintenance. We prioritize quality and performance, delivering efficient solutions for your airline needs.

What Are pneumatic push in fittings?

Pneumatic push-in fittings, also known as push-to-connect fittings, are essential components in pneumatic systems. They’re designed to provide a quick and easy way to connect tubes or hoses to various pneumatic devices, such as valves, cylinders, and air tools. Their key feature is the ability to create secure, leak-free connections without the need for tools.

pneumatic push in fittings applications

Pneumatic push-in fittings find widespread use across numerous industries due to their ease of installation and reliable performance. Their applications range from simple air tool connections to complex automated systems. The quick-connect nature of these fittings significantly reduces assembly time and maintenance efforts, making them a preferred choice for many pneumatic applications.

Here are some common applications:

Automated assembly lines: Used for connecting air lines to robotic arms and other automated equipment.
Packaging machinery: Employed for air-driven actuators and other pneumatic components.
Medical devices: Utilized in respiratory equipment and other medical applications requiring precise air control.
Automotive industry: Found in air brake systems, pneumatic tools, and other automotive applications.
General industrial air systems: Used for connecting air lines to various tools and equipment in manufacturing and maintenance.

pneumatic quick connect fittings types

Pneumatic quick connect fittings offer versatile solutions for rapid connections and disconnections in air systems.

Here are some common pneumatic quick connect fittings types:

Push-to-Connect Pneumatic Quick Connect Fittings:

These push to connect pneumatic quick connect fittings employ an internal collet mechanism that grips tubing when inserted, creating a secure seal. They are renowned for their ease of use, requiring no tools for installation or removal. Simply push the tubing in to connect and press the release sleeve to disconnect. They’re widely used in applications where frequent connections are necessary, such as automated assembly lines and portable air tools.

Threaded Pneumatic Quick Connect Fittings:

These fittings utilize threaded connections, such as NPT or BSPT, for secure and robust connections. They often incorporate a ball-locking mechanism that engages when the fitting halves are joined. Threaded quick connects are ideal for high-pressure applications and environments where vibration or mechanical stress is a concern. They provide a reliable seal and are commonly found in heavy-duty industrial settings.

Cam-Lock Pneumatic Quick Connect Fittings:

Also known as cam and groove pneumatic quick connect fittings, these connectors use a simple lever mechanism to lock the fitting halves together. They are designed for quick and easy connections of large-diameter hoses or pipes, often used in fluid transfer applications. Cam-lock pneumatic quick connect fittings are popular in industries like agriculture, construction, and chemical processing, where rapid fluid transfer is essential.

Bayonet Pneumatic Quick Connect Fittings:

These pneumatic quick connect fittings use a twist-lock mechanism to connect and disconnect. They are commonly used in applications where space is limited or where frequent connections are required. Bayonet pneumatic quick connect fittings provide a secure and reliable connection, and are commonly found in medical devices, and other applications where quick connections and disconnections are needed.

how to use pneumatic push in fittings?

Pneumatic push-in fittings offer a remarkably simple and efficient way to create air-tight connections. Understanding the correct procedure ensures optimal performance and prevents leaks. Here’s a step-by-step guide to using them effectively:

Step 1. Preparing the Tubing:

Before inserting the tubing, it’s crucial to prepare it correctly. Begin by ensuring the tubing is cut squarely. A clean, perpendicular cut minimizes the risk of leaks and ensures a proper seal. Use a dedicated tube cutter for best results, avoiding jagged edges or deformation. After cutting, inspect the tubing for any damage or debris that could compromise the connection.

Next, it is important that the outside of the tubing is clean. Any dirt, or debris on the outside of the tubing could cause a leak. Ensure the tubing is free of any scratches, or dents. If the tubing is not properly prepared, it could cause damage to the fitting, and cause a leak.

Step 2. Inserting the Tubing:

To connect the tubing, simply push it firmly into the fitting until it bottoms out. You’ll feel a slight resistance as the collet mechanism grips the tubing. Ensure the tubing is fully inserted to create a secure, leak-free seal. A gentle twisting motion during insertion may help, but excessive force is unnecessary. Once inserted, gently tug on the tubing to confirm it’s securely locked in place.

It is very important to ensure the tubing is fully inserted into the fitting. If the tubing is not fully inserted, it will cause a leak. Once you have inserted the tubing, it is very important to test the connection. Apply pressure to the tubing, and check for any leaks. If there are any leaks, remove the tubing, inspect the tubing and the fitting, and re-insert the tubing.

Step 3. Removing the Tubing:

To disconnect the tubing, first ensure the system is depressurized. Then, press the release sleeve against the fitting body. This action disengages the collet, allowing you to pull the tubing out. Apply even pressure on the release sleeve to avoid damaging the fitting. Avoid pulling on the tubing without pressing the release sleeve, as this could damage the collet mechanism or the tubing.

The release sleeve is designed to make disconnecting the tubing very easy. Do not use any tools to remove the tubing. If the tubing is difficult to remove, ensure that the system is fully depressurized. If the tubing is still difficult to remove, inspect the fitting for any damage. If the fitting is damaged, replace the fitting.

why choose our pneumatic push in fittings?

Choosing our pneumatic push-in fittings means opting for reliability and efficiency. We prioritize quality in every aspect of our manufacturing process, from material selection to rigorous testing. Our fittings are designed to provide secure, leak-free connections, minimizing downtime and optimizing system performance.

We understand the importance of customization, offering a wide range of options to meet your specific application needs.

Here are key reasons to choose our fittings:

Superior Quality and Durability: We use high-grade materials to ensure long-lasting performance in demanding environments.
Wide Range of Configurations: Our extensive product line includes various sizes, shapes, and thread types to meet diverse needs.
Reliable Leak-Free Connections: Our precision-engineered fittings ensure secure seals, reducing air loss and improving system efficiency.
Easy Installation and Maintenance: Our push-in design simplifies installation and maintenance, saving time and labor costs.
Customization Options: We offer tailored solutions to meet specific application requirements, ensuring optimal performance.

how to choose the best pneumatic push in fittings?

Selecting the optimal pneumatic push-in fittings is crucial for ensuring system efficiency and preventing costly downtime.

Here’s a guide to help you choose the most qualified pneumatic push in fittings:

Material Compatibility: Evaluate the operating environment and media to select a fitting material (brass, stainless steel, plastic) that resists corrosion and chemical degradation.
Size and Configuration: Determine the required tube outer diameter and thread size to match your existing system. Choose the appropriate fitting configuration (straight, elbow, tee) for optimal layout.
Pressure and Temperature Ratings: Verify that the fitting’s pressure and temperature ratings meet or exceed your system’s operating conditions to ensure safe and reliable performance.
Seal Type: Select a seal material (NBR, FKM) that is compatible with the media and temperature range to prevent leaks and maintain system integrity.
Installation and Maintenance: Consider the ease of installation and maintenance. Opt for fittings with user-friendly release mechanisms for quick tube disconnection.
